MHW43FS 43DB UHF/VHF SHIELDED MASTHEAD

AMPLIFIER KINGRAY

Code: 00760890

0.2980 kg
9319493230551
EACH
20
In Stock
DON'T PAY $131
$99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

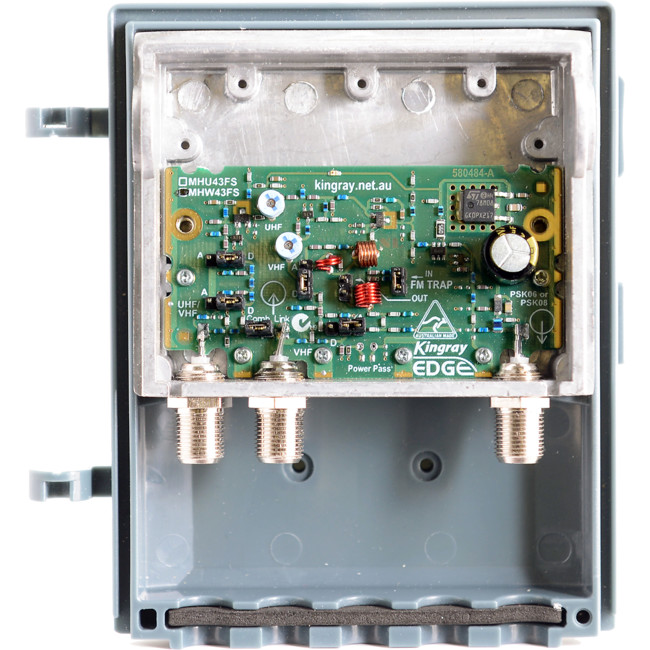

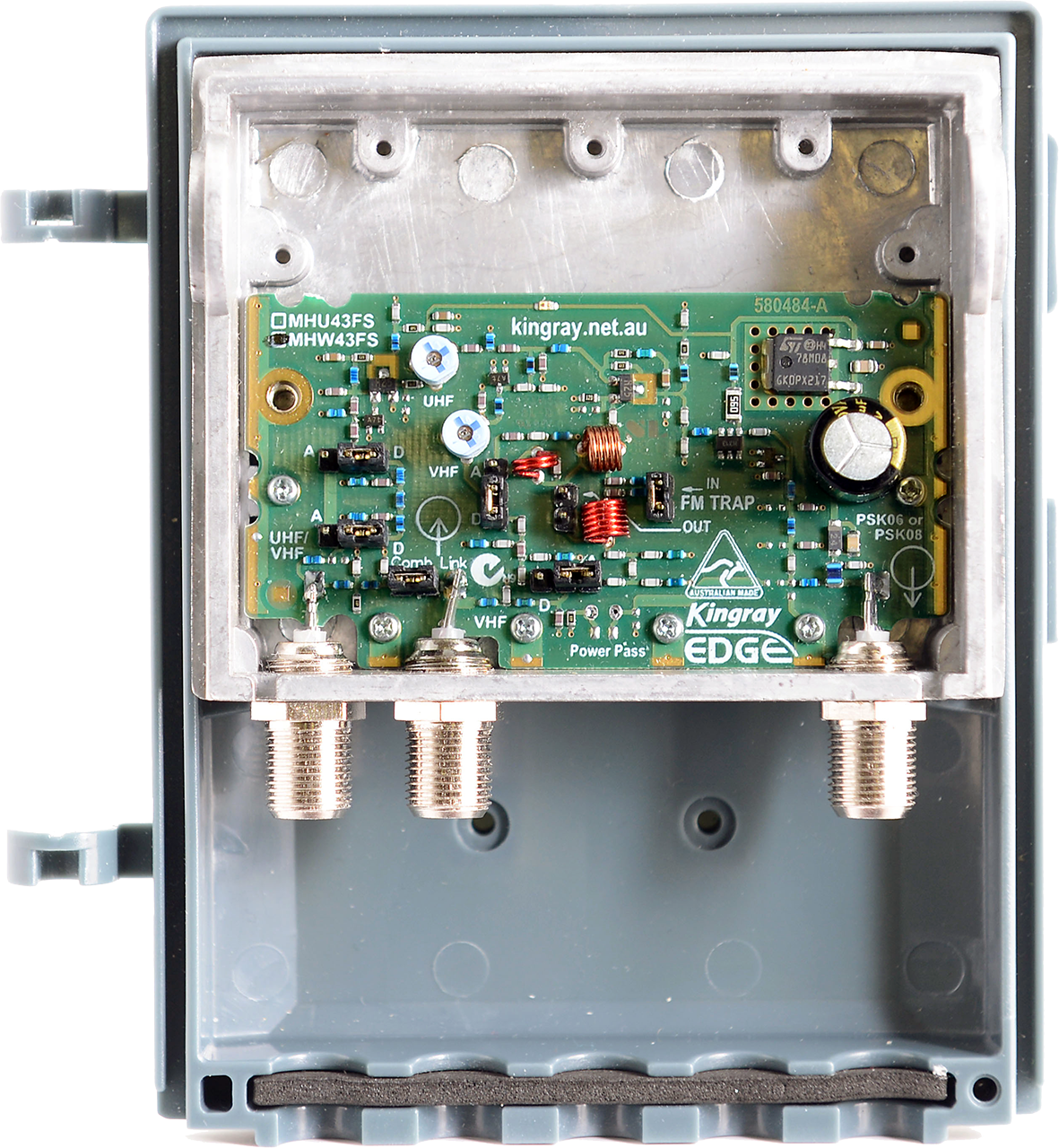

MHW43FS Fully Shielded Masthead Amplifier

The NEW Kingray Edge series has been engineered to provide a future proof solution with switchable LTE/4G filtering to maximise interference rejection.

The Edge series features links allowing the amplifier to be configured to best suit the installation now and in the future. The range includes both wideband and UHF only modelsused to amplify the whole UHF band or alternatively by re-positioning the links, all services above 694 MHz are filtered, blocking future LTE transmissions.

In addition to LTE filtering some wideband models in the Edge series include user selectable low band filtering to eliminate all services below 174 MHz.

The Edge series is designed to meet the needs of the television reception industry now and into the future.

F Type shielded masthead designed to amplify separate VHFand UHF antennas or a combined VHF/UHF antenna.

The Edge Series mastheads can also be powered by either 14 Volt DC, 17.5 (See power supply section). The increased use of Surface Mount technology has resulted in the ability to produce a smaller PCB with increased reliability and performance.

Optional plug pack's: PSK06, PSK08, PSK06F or PSK08F.

Specifications

VHF UHF
Frequency Range (A) 44-230 (A) 520-820
(D) 174-230 (D) 520-694
Maximum Gain (dB) 27-35 43
Inputs 1 or 2 or comb
Noise Figure (dB) <3 <2.5
Gain Control (dB) 16-12 10
Power Supply (PSK or KPS) 06 or 08
Current (mA)
FM Trap Option 88-108 MHz (dB) -25
Pager Filter Option 148 MHz Aust/158 MHz NZ (dB) -25
LTE 694MHz Filter(dB) -25
Output Figure DIN45004B (uV) 108
