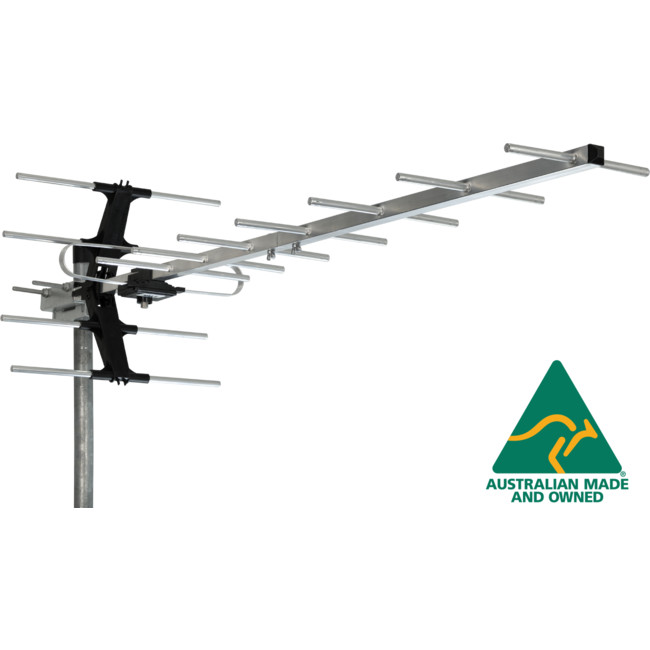

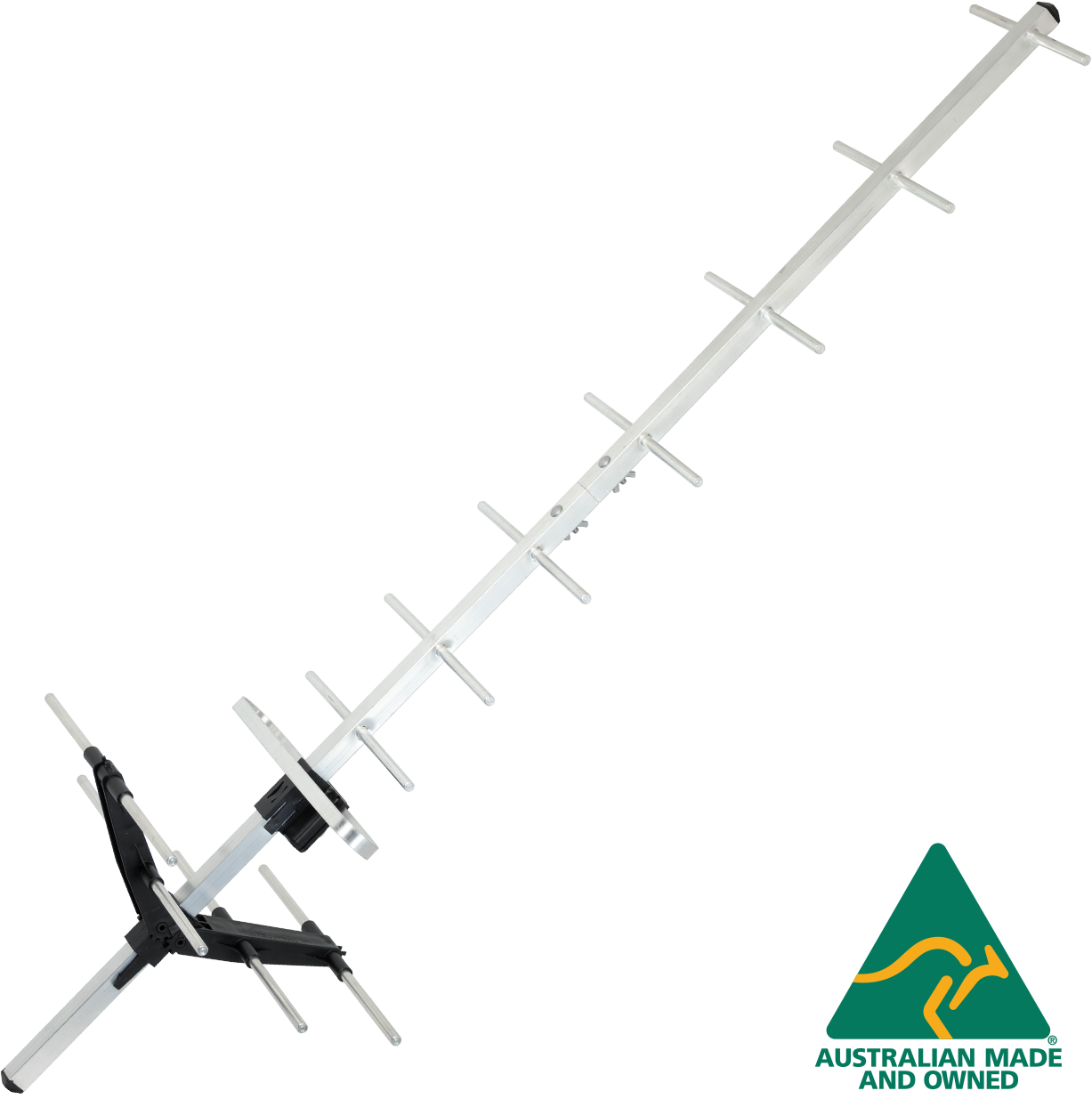

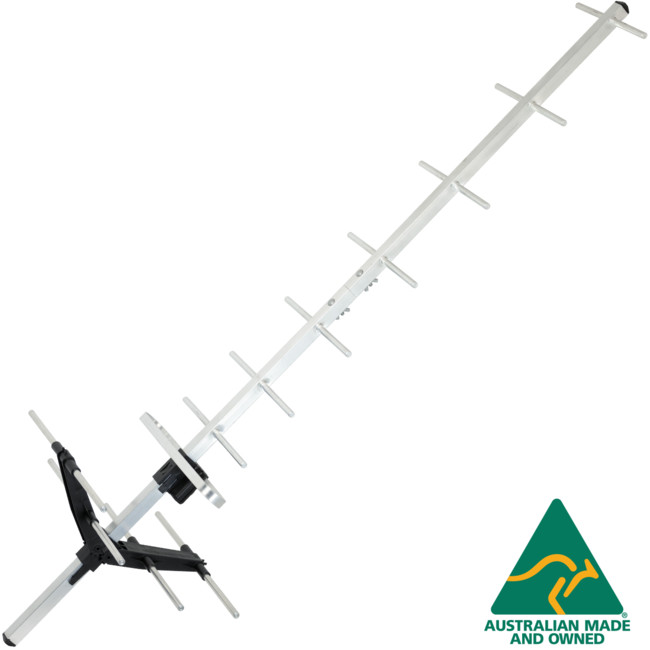

01TSP2851-4G TRU-SPEC 12 ELEMENT UHF CH28-51 PRIME ANTENNA WITH 4G FILTER

Hills Antenna 01TSP2851-4G Tru-Spec-Prime 2851 12-Element UHF 4G Antenna is the latest in the evolution of our UHF Yagi antennas for Digital TV and is designed for prime signal areas, covering channels 28-51.

The Tru-Spec TSP2851 has long been Australia’s favourite UHF antenna due to its unique BoomLock™ manufacturing process, making this antenna durable, performing well beyond all expectations.

This new edition of the TSP2851 now features an individually tuned and optimised RF filter circuit.

Specifically designed with shielded inductors, to better withstand any potential 4G/5G transmission interference from the growing number of mobile towers.

Designed and manufactured in Australia with unmatched quality and a Lifetime Warranty, you simply cannot go wrong with this antenna.

It is suitable for both domestic and commercial applications.


Features

  • True digital specifications for prime UHF reception areas
  • Boomlock™ manufacturing technology – Patented by Hills
  • Channels 28-51
  • Ultrasonically sealed balun housing for maximum reliability
  • PCB balun for true matching and lowest insertion loss
  • Included 4G″ filter
  • Strong and lightweighted construction

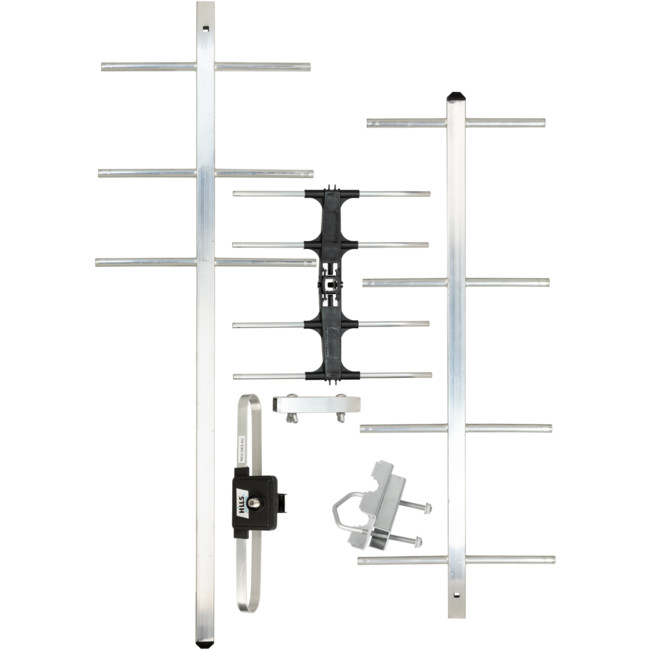

  • Two piece boom
  • Lifetime manufacturer warrant

Specifications


Antenna CategoryUHF
Antenna BandBand 4 & 5 (Ch 28-51)
Antenna TypeYagi
Antenna Elements12
Antenna Filter4G+
Antenna Max GainUHF 9-11dBi
Antenna Front to Back RatioUHF 12-23dB
Antenna MaterialsAluminium, UV Stabilished Plastics
ColourSilver
Antenna Dimensions (L×W×H)1100mm × 290mm × 250mm
Included AccessoriesRubber Boot, V Block & U Bolt (fitted)
Unit PackagingDisplay Box
WarrantyLifetime Warranty
