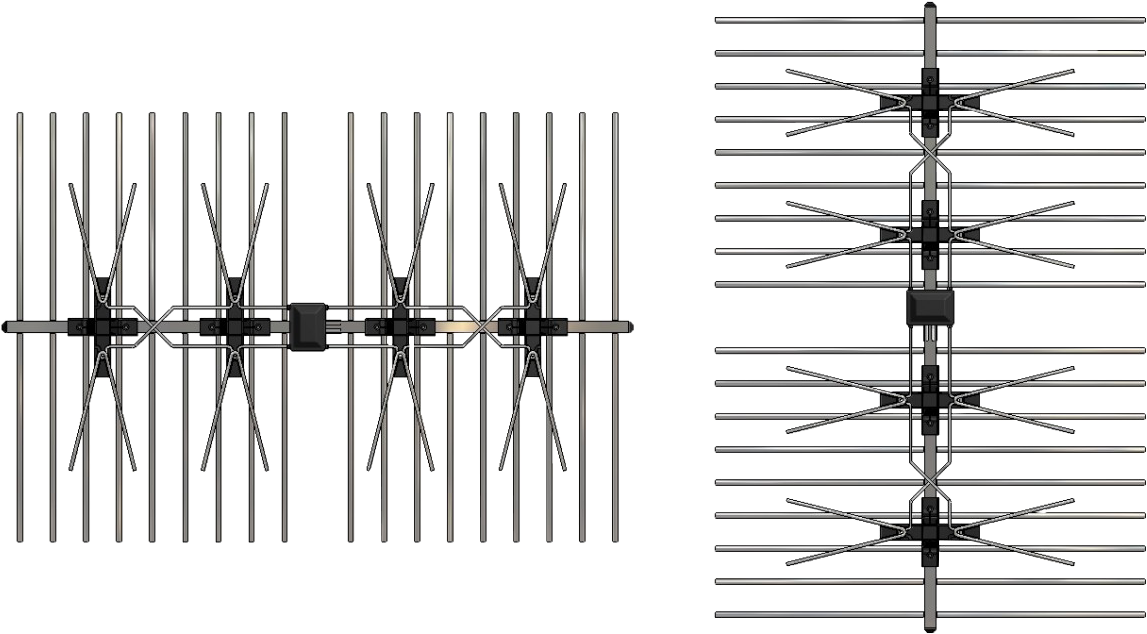

TRUMAX36-4G UHF PHASED ARRAY ANTENNA WITH 4G FILTER - HILLS

The Tru-MAX? antenna range is a digital only replacement to the UMX Analogue and Digital antenna.
Hills understands the potential for 4G/LTE interference with the range of Tru-MAX? antenna's in certain installations areas and conditions.
Supporting our product Hills are introducing this range of products which are included with 4G filtering allowing you the best performing installation and system possible regardless of location or 4G proximity.

Mounting Options; The TRU-MAX? antennas can be mounted ineither Vertical or Horizontal Polarisation mode to suit yourunique signal area

{tab Features}

• Designed for the precise digital frequency bands for true HD performance

• BoomLock? manufacturing technology - patented by Hills

• Band 4 UHF operation

• Channels 28 ? 51

• Included with 4G filtering

• Ultrasonically sealed balun for maximum reliability

• Strong robust mechanical construction

• Lightweight and compact

• Aluminum materials for superior corrosion resistance

• Design and Made in Australia

• 5 Year Manufacturer Warranty

{tab Specifications}

Channels 28 - 51
Gain (dB) 11.5 - 14
F/B Ratio (dB) 17 - 21
Connector F-type
Balun PCB
Ultrasonically sealed balun Yes
Reflector Screen element
