CLOOPHDLRAM HD SERIES REMOTE TUNED LOOP

PK Loop Antennas are proudly designed and manufactured inAustralia

An outdoor AM Loop antenna with remote tuning for buildings constructed with steel roofs and frames ( like sheds or caravans) or those with re-inforced concrete.

The Loop mounts outdoors and a single co axial cable connects it to the tuning control box.

There is an output for a wired connection to your AM radio / receivers external antenna and ground terminals

The tuning system is sharp and peaks right on station, boosting weak signals whilst rejecting interference and enhancing reception quality.

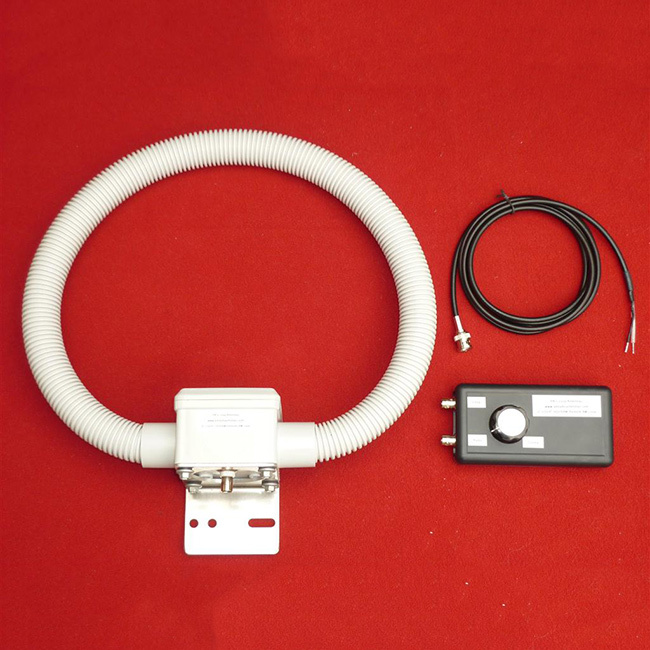

Supplied Accessories

• 1 x Loop antenna,control box with inbuilt 9V battery holder and instructions
• 1 x Loop cable, a 10m Coax cable pre-fitted with "F" connectors
• 1 x 1m - F- connect to open ends cable for radio / receiver antenna - ground terminals
• 1 x L-mount bracket with screws to fit it to the loop base

Specifications:

Set Up

• Connect the coax cable between the Loop antenna and the control box connecter marked "LOOP"
• Connect your Radio / Receiver to the connector marked "Radio" on the control box
• Insert a fresh 9v Alkaline battery ( Not supplied ) into the control box
• Tune your Radio to the desired Stations' frequency
• Slowly turn the manual tune control to the point of strongest reception
• Orientate the Loop Antenna to obtain the clearest reception; Edge on towards the transmitter is best.
