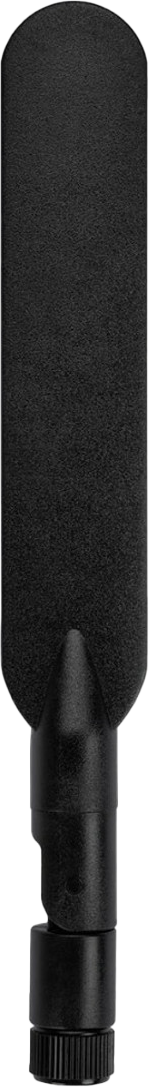

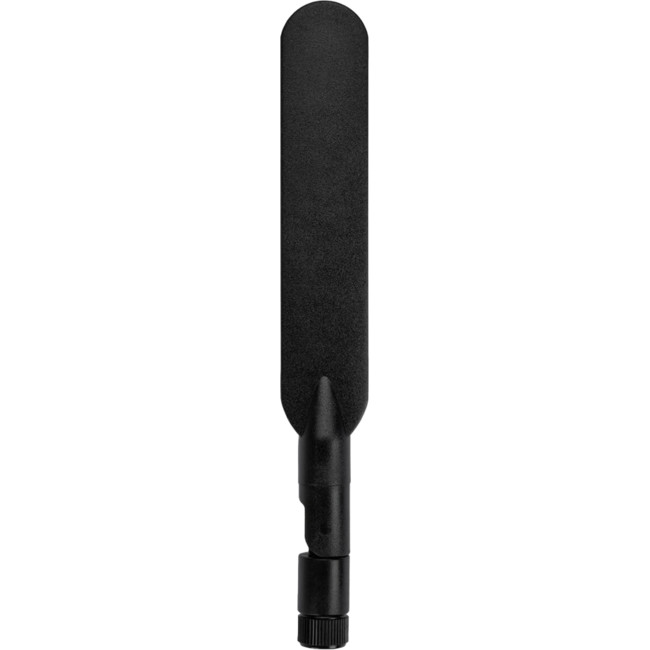

Powertec ANT-BH-00043 4G Paddle Hinged Antenna, 700 to 2700 MHz, SMA Male
The Powertec Blackhawk Paddle Hinged Antenna provides 4G and Wi-Fi coverage, high gain for M2M/IoT, and a flexible, compact design ideal for tight spaces.
The Powertec Blackhawk Paddle Hinged Antenna is a highly versatile solution for your wireless communication needs. Designed to connect directly to a 4G modem or any device with an SMA interface, this antenna covers the global 3G and 4G LTE range from 700 to 2700 MHz, including NB-IoT and LTE-M bands. Additionally, it supports the 2.4 GHz range, making it suitable for Wi-Fi applications.
Key Features:
- Covers 700 to 2700 MHz, including 3G, 4G LTE, NB-IoT, and LTE-M bands
- Supports B8, B20, B28 bands, and 2.4 GHz Wi-Fi
- SMA Male connector
- Adjustable right-angle base
- Articulating hinge for easy rotation and positioning
- High radiated efficiency and average gain
- Compact design
High Gain and Efficiency for Optimal Performance
With an impressive average gain, the Blackhawk Paddle antenna delivers excellent performance for M2M and IoT applications. It features 2 dBi gain across 698 to 960 MHz, 2 dBi for 1710 to 2700 MHz, and 5 dBi gain for 2500 to 2700 MHz. This high radiated efficiency ensures optimal signal strength and reliable connectivity, even in challenging environments.
Adjustable and Convenient Design

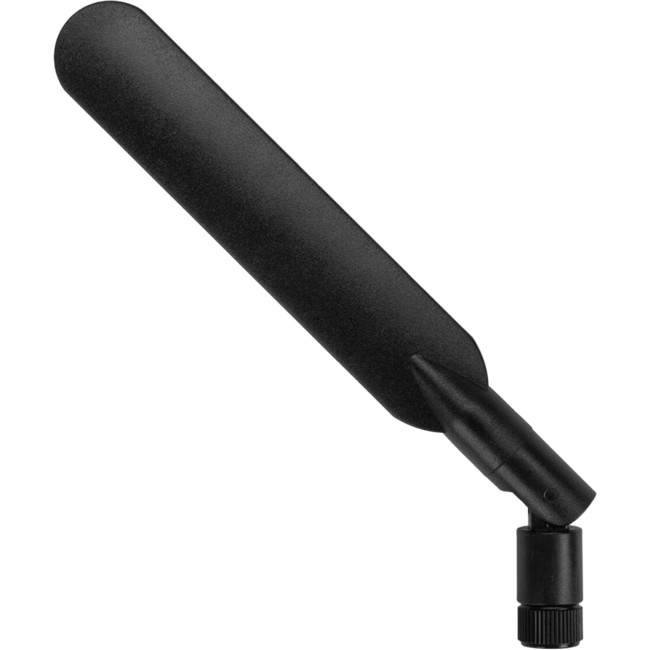

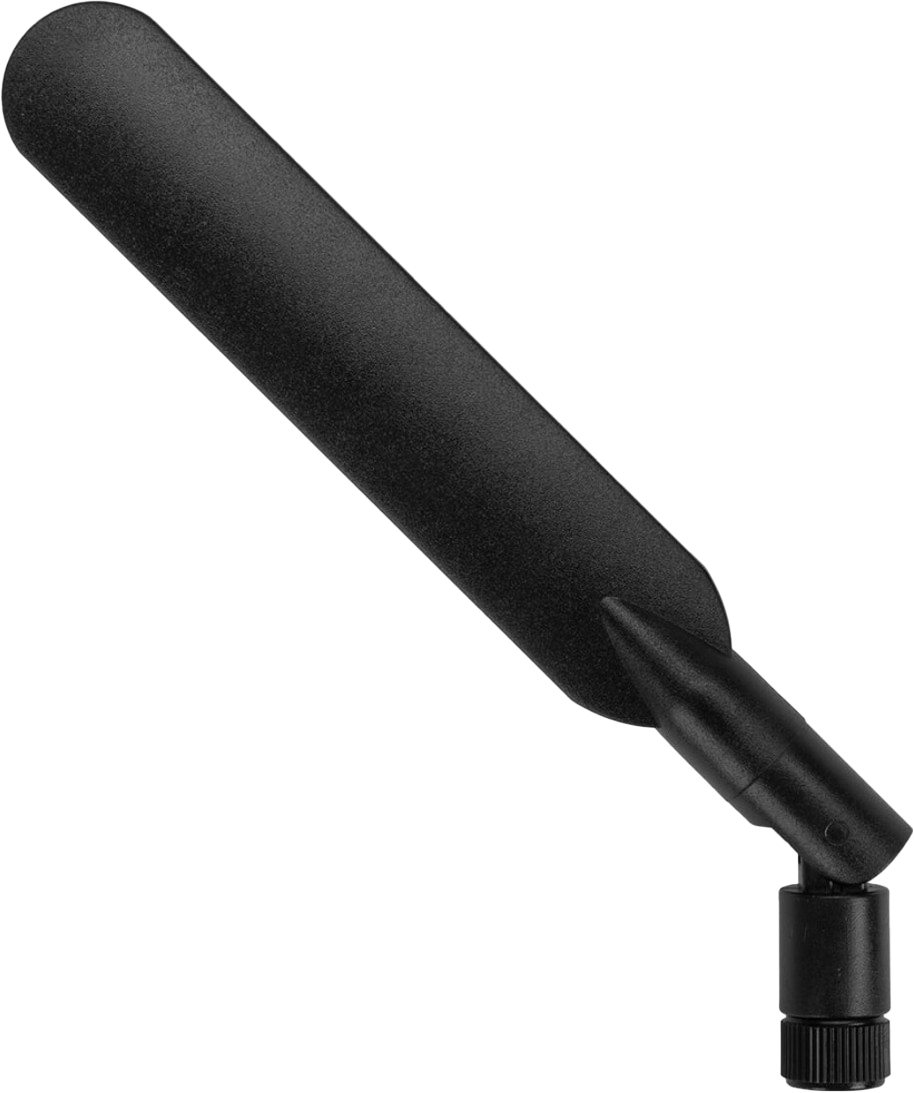

The unique articulating hinge of the Blackhawk Paddle antenna allows for easy rotation to the correct polarisation, and can be bent to a right angle for a more compact and convenient positioning behind your device. This flexibility makes it ideal for tight spaces and improves overall antenna placement.
Compact Solution for IoT and M2M
Perfect for use with the CEL-FI GO repeater, the Blackhawk Paddle is an excellent compact antenna for M2M (Machine to Machine) and IoT (Internet of Things) applications. Its high gain, flexibility, and SMA Male connector make it an ideal solution for enhancing your wireless network in small, tight environments.
Specifications
| Category | Specification | Details |
| Model Version | Blackhawk Paddle Hinged Antenna | 4G Paddle Antenna, 700 to 2700 MHz, SMA Male |
| Frequency Range | Coverage | 700 MHz to 2700 MHz
(including NB-IoT, LTE-M bands B8, B20, B28) |
| Additional Frequency | Wi-Fi | 2.4 GHz range |
| Connector Type | Interface | SMA Male with adjustable right angle base |
| Gain | Across Frequency Bands | 2 dBi for 698-960 MHz
2 dBi for 1710-2700 MHz
5 dBi for 2500-2700 MHz |
| Radiated Efficiency | Performance | High radiated efficiency
High average gain |
| Applications | Use Cases | M2M
IoT applications
CEL-FI GO repeater |
