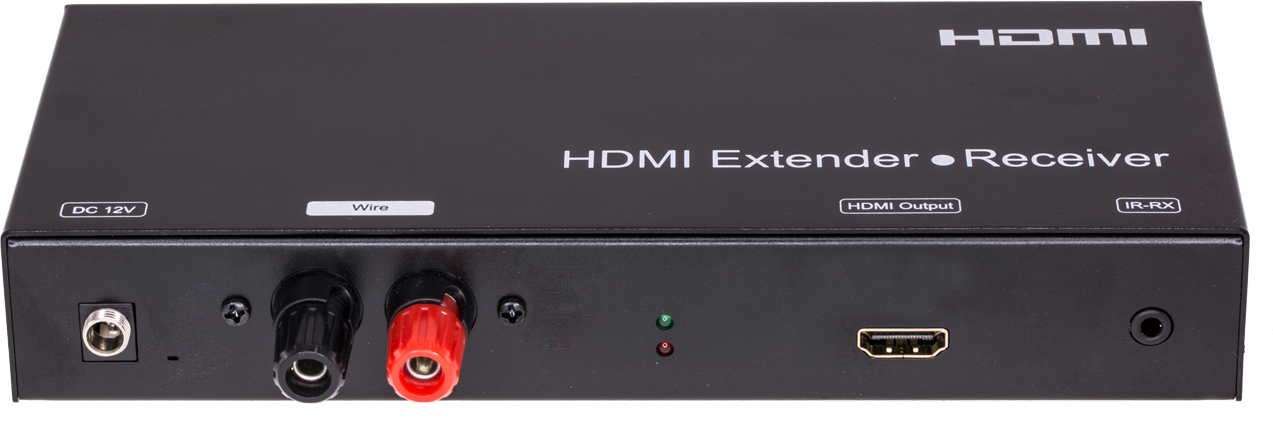

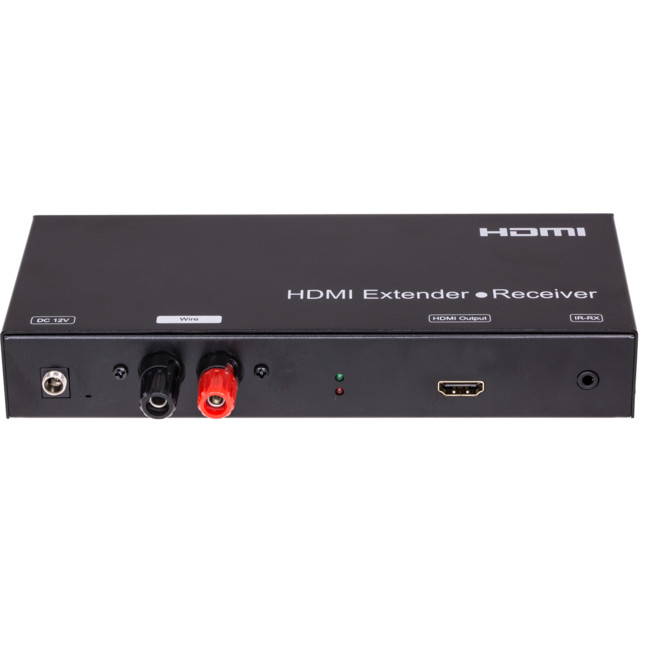

HDMIAWRX HDMI OVER ANY WIRE RECEIVER

SPARE ONLY

Code: 64510348

1.00 kg
9328202002136
EACH
5
Low Stock
DON'T PAY $299
TRADE ALERT!
$255 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

Spare receiver for HDMIAW

Note: This product can not be connected to 220V/380V highvoltage.

Specifications

Operating Temperature Range -5 to 35°C
Operating Humidity Range 5 to 90%RH (No condensation)
Supported Audio Format LPCM audio format
Transmission Distance 3800m via 2-conductor cable (Ideally 12AWG-19AWG)
Supported Video Format DTV/HDTV: 480i/ 480p/ 576i/ 576p/ 720p/ 1080i/ 1080p
VESA: 800x600, 1024x768, 1280x768, 1280x960, 1280x1024
1680x1050, 1920x1080, 1280x720, 1360x768, 1400x1050,1280x1024
Connections on TX 1x HDMI input, 1x HDMI loop out, IR-TX socket, 2x terminal post, power supply socket
Connections on RX 2x terminal post, 1x HDMI output, IR-RX socket, power supply socket
Power Consumption TX: 6.5 Watts, RX: 5.5 Watts
Dimension 206.2(L)x 110(W)x 33(H)mm
IR Frequency 38K- 56KHz
Net Weight TX: 545g, RX:548g

Alternate Products

True 2
The HDMIAW transmitter-receiver kit can extend your HDMI source over any 2-conductor cable including twisted cable, telephone cable or CAT5/6 etc. It is an ideal HDMI extender over your existing cable. Transmit 1080p HDMI up to 3.8km! HDMI loop-out on transmitter IR pass-through control Multi-level cascading
