CT2IP8032 8 CHANNEL DVB-T TO IP ENCODER

DIGI-MOD HD BY ZYCAST

Code: 43151290

4.66 kg
9328202020208
EACH
Low Stock
TRADE ALERT!
$8140 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

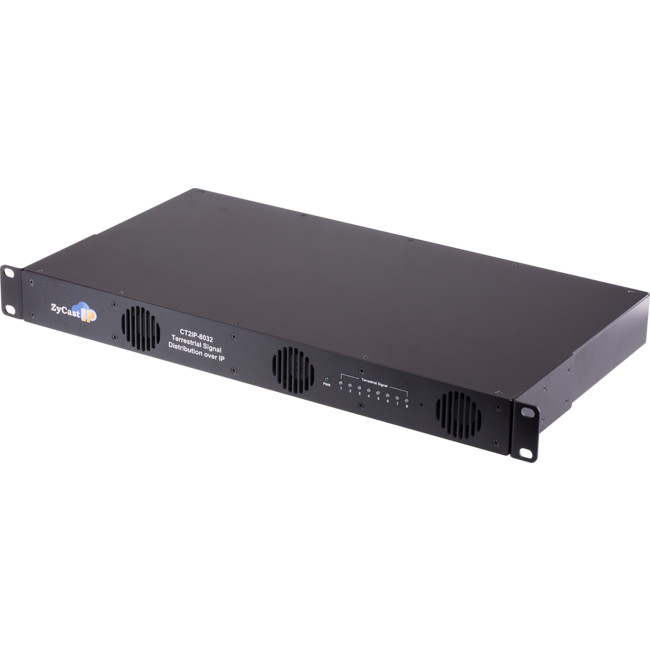

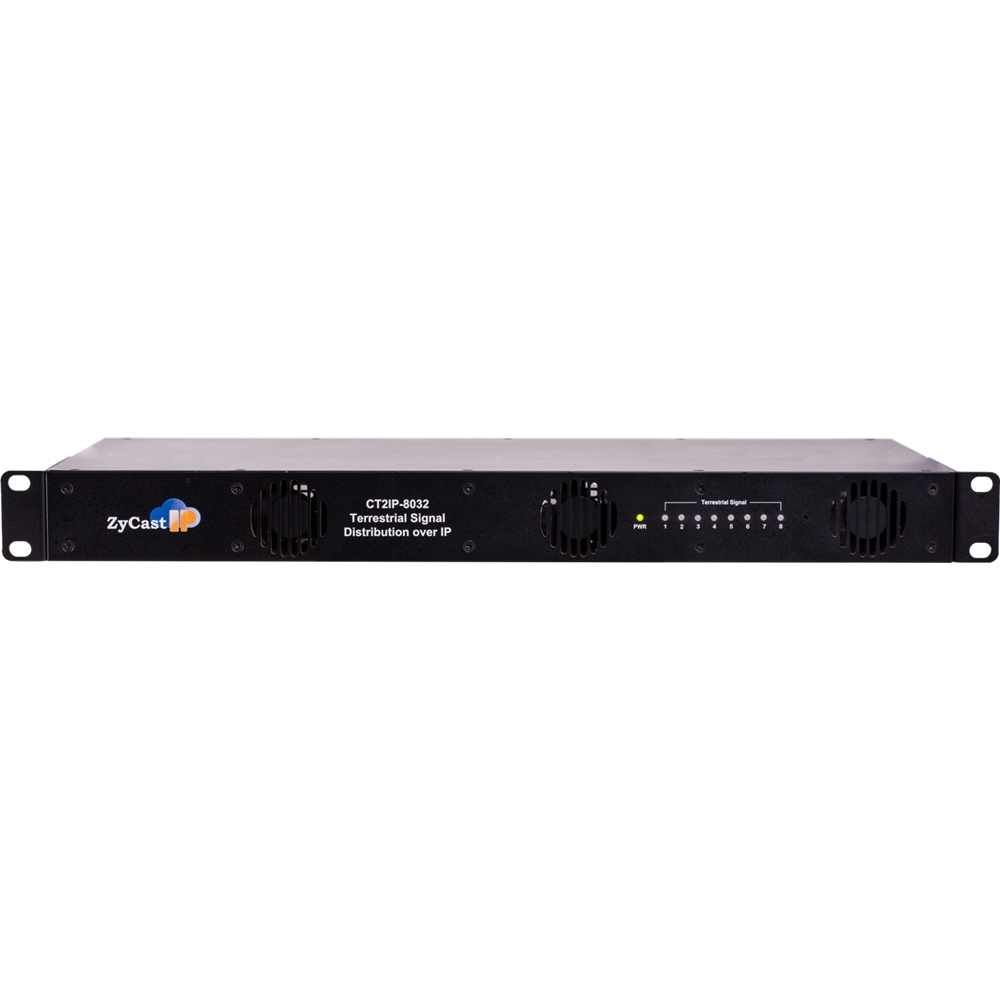

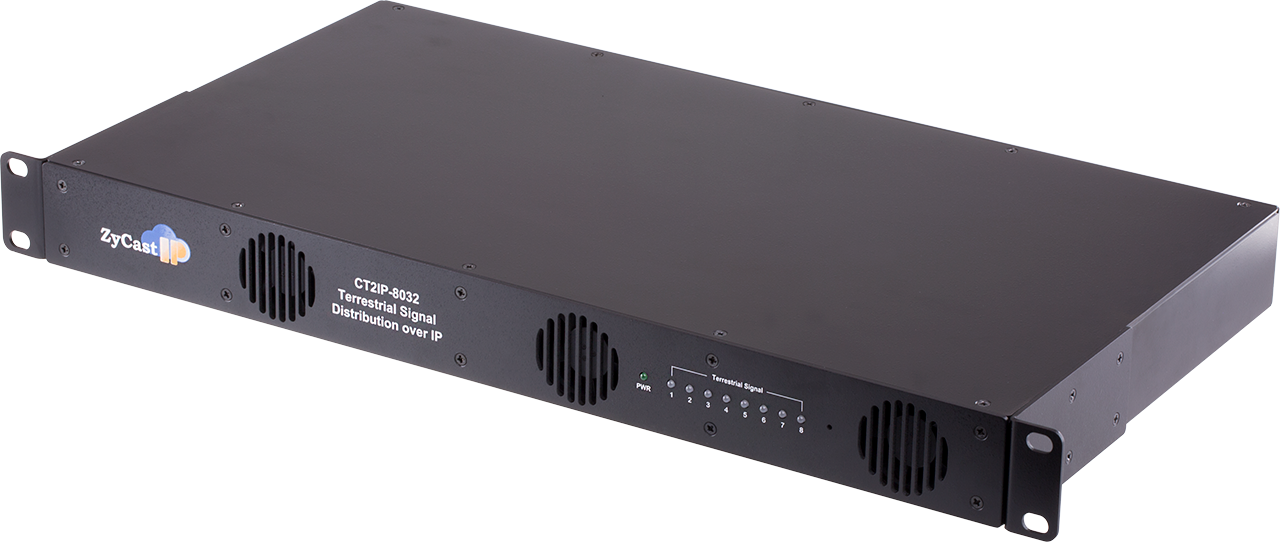

CT2IP-8032 8 CHANNEL DVB-T TO IP ENCODER

Terrestrial Signal Distribution Over IP

The ZyCast CT2IP-8032 is an all-inclusive high quality DVB-T/T2 to IPTV Converter. Designed to allow system integrators to receive multiple DVB-T/T2 signals and quicklyand easily convert these signals to produce a high quality IPTV Distribution system. The CT2IP-8032 is a highly flexible system allowing integrators to quickly receive, convert, and distribute a variety of commercial terrestrial channels.

  • 8 independent DVB-T Inputs up to 32 Independent IP Output Streams
  • Full Parameter Settings
  • Professional Programs Mapping

Specifications

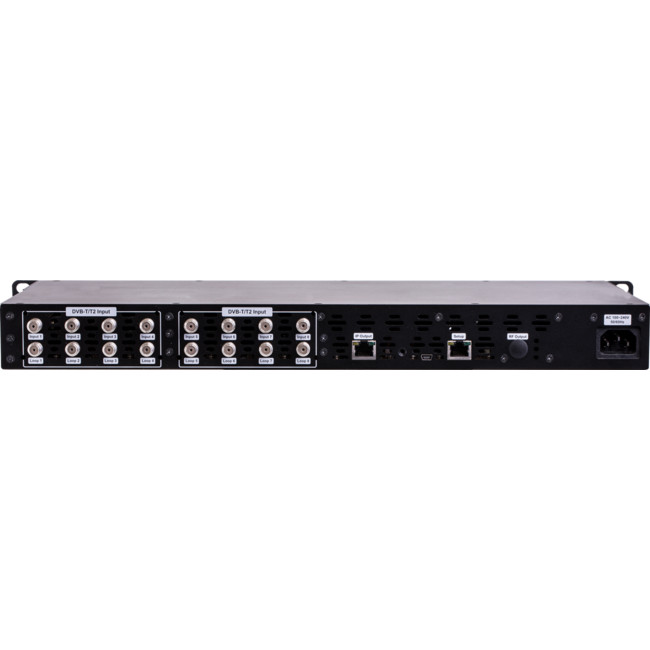

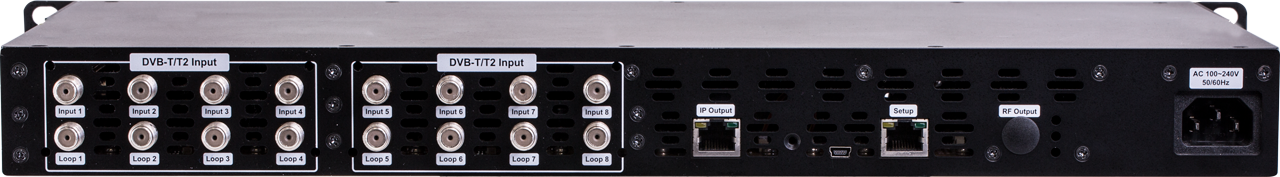

TerrestrialInput
  • F Female × 8
  • Loop Through × 8
Frequency Range
  • VHF: 50.5MHz to 296.5MHz
  • HF: 306MHz to 858MHz
Constellation
  • DVB-T: QPSK, 16-QAM, 64 QAM
  • DVB-T2: QPSK, 16 QAM, 64 QAM, 256 QAM
Bandwidth6MHz, 7MHz, 8MHz (Factory Setting)
Guard Interval
  • DVB-T: ¼, ??, 1/16, 1/32
  • DVB-T2: ¼, 19/128, ??, 19/256, 1/16, 1/32, 1/128
FEC Code Rate
  • DVB-T: 1/4, 1/8, 1/16, 1/32
  • DVB-T2: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
Transmission Mode
  • DVB-T: 2k / 8k
  • DVB-T2: 1k / 2k /4k / 8k / 16k / 32k
IPConnector1 × RJ45 100 / 1000 Mbps Ethernet
Streaming Protocols
  • Unicast UDP / RTP
  • Multicast UDP / RTP
SPTS Streaming32 Number of Streams
HardwareRAM (DDR3)128MB
Memory (NAND Flash)N/A
LEDPower LED1 × Green (ON)
Indicator LEDs8 × Green (Input Signal Locked) OFF (Input Signal Unlocked)
GeneralConfigurationWeb GUI: RJ45 10 / 100 Mbps Ethernet
Control ProtocolsHTTP / Restful API
Upgrade via Web GUITBD
Power50W
Input Line Voltage95V ~ 264V AC / 50~60Hz
PackagingDimensions (W×D×H)482.7mm × 238dmm × 43.2mm (Excluding Connectors)
Weight4kg
