  • ZMPS ZONE PAGING STATION FOR ZONE MIX SYSTEM

ZMPS ZONE PAGING STATION FOR ZONE MIX SYSTEM

Code: 28650310

EACH
Special
Buy-In
$600 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

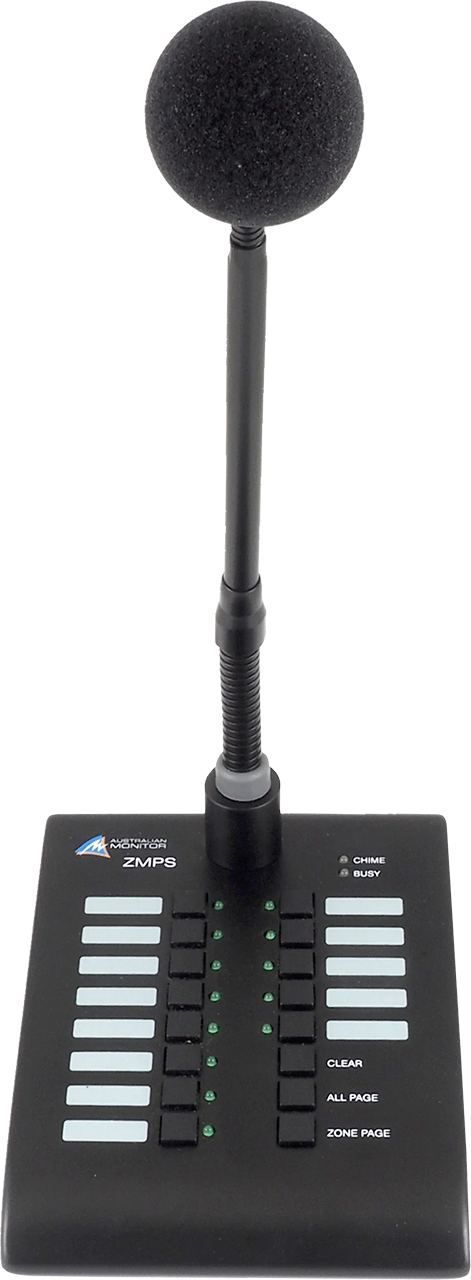

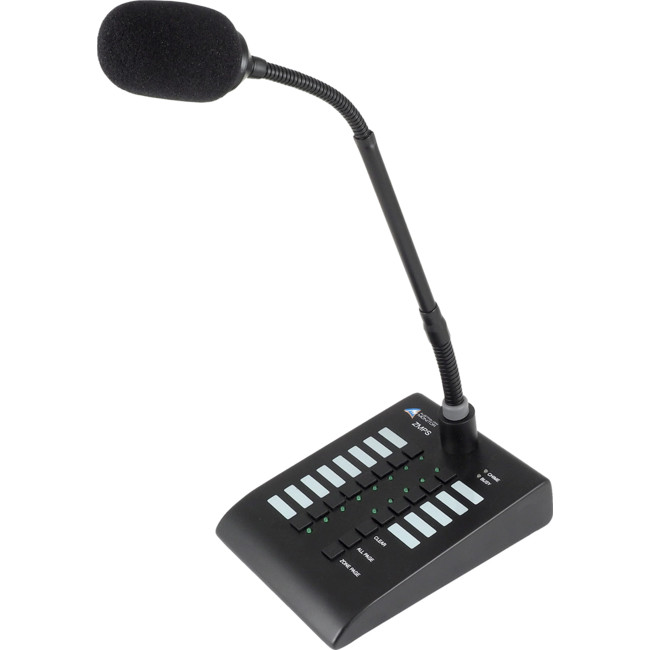

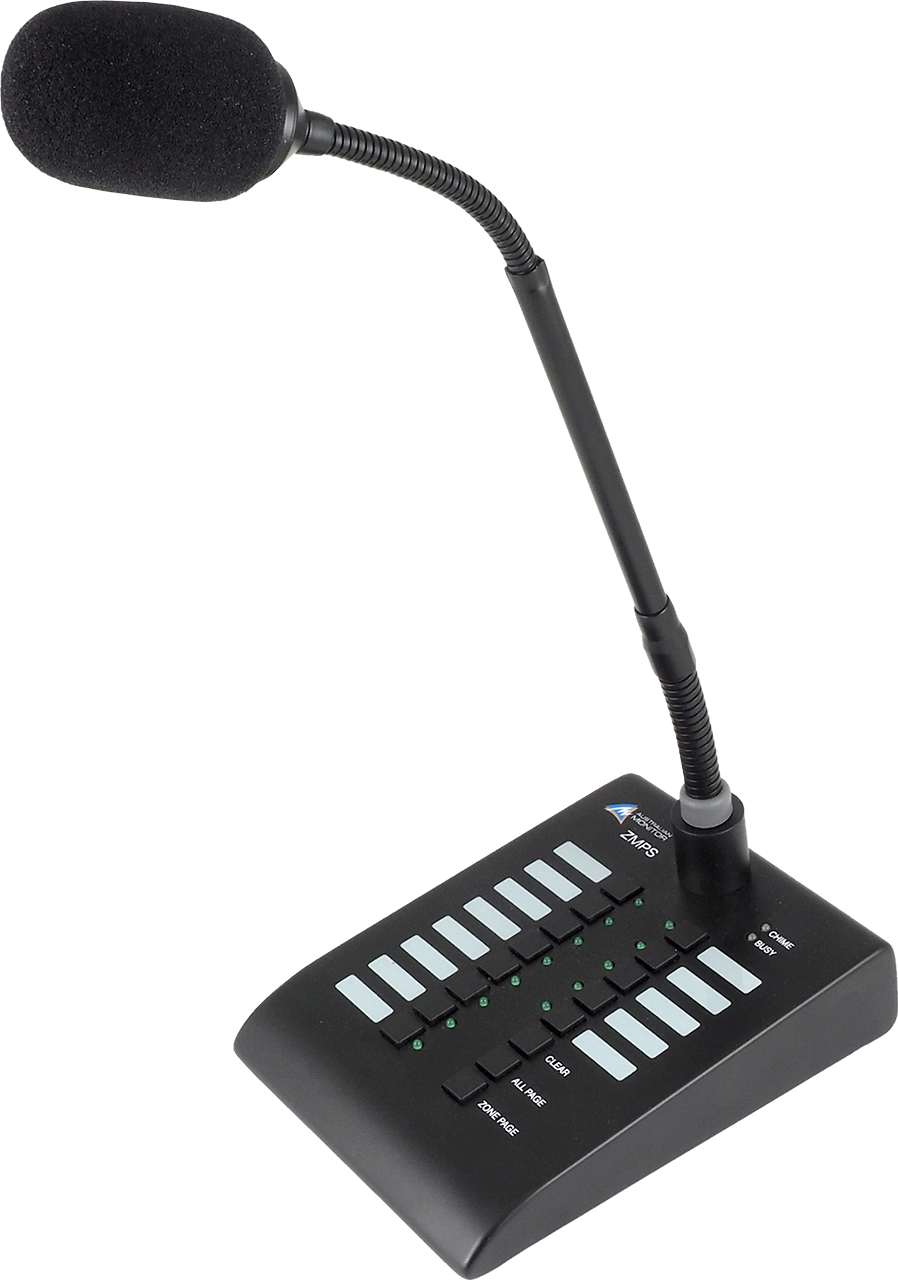

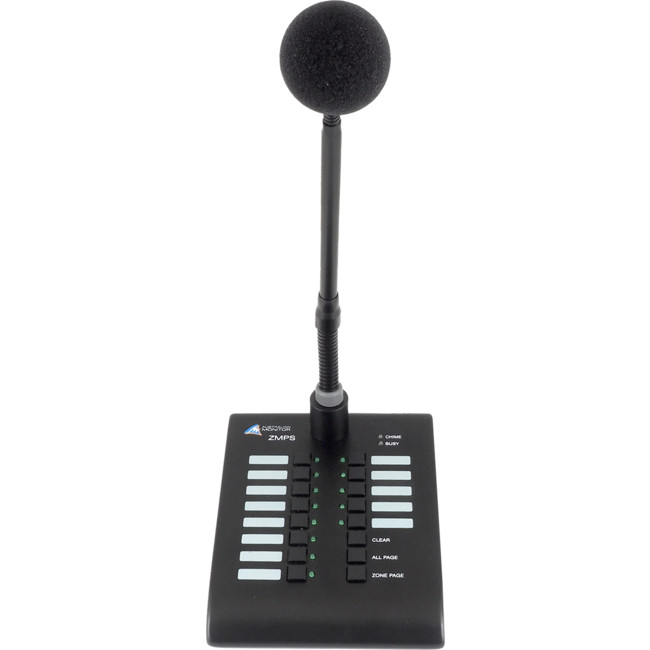

ZMPS Paging Microphone 8 zone control

The ZMPS paging station is a programmable paging front end for the ZONEMIX system. Featuring a slimline gooseneck paging microphone and the ability to page any single zone, combination of zones or All Call.

The ZMPS can also trigger pre-recorded announcements from an SD card on the ZONEMIX system for recurring announcements.

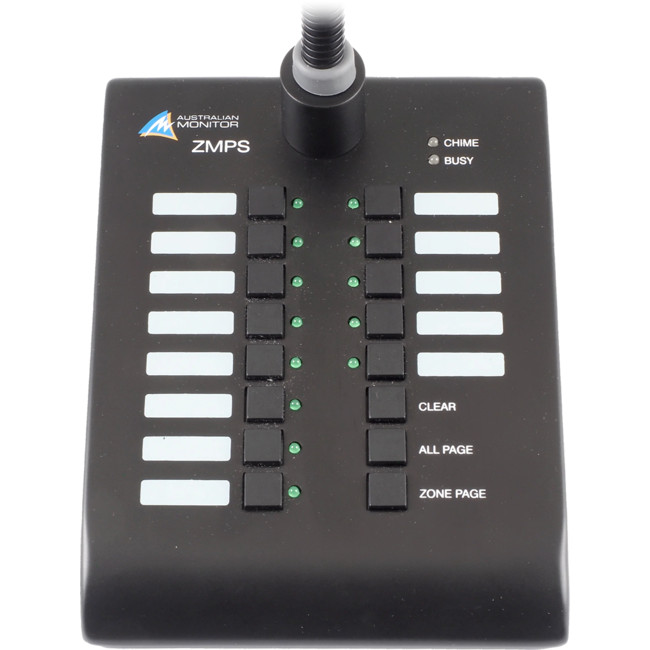

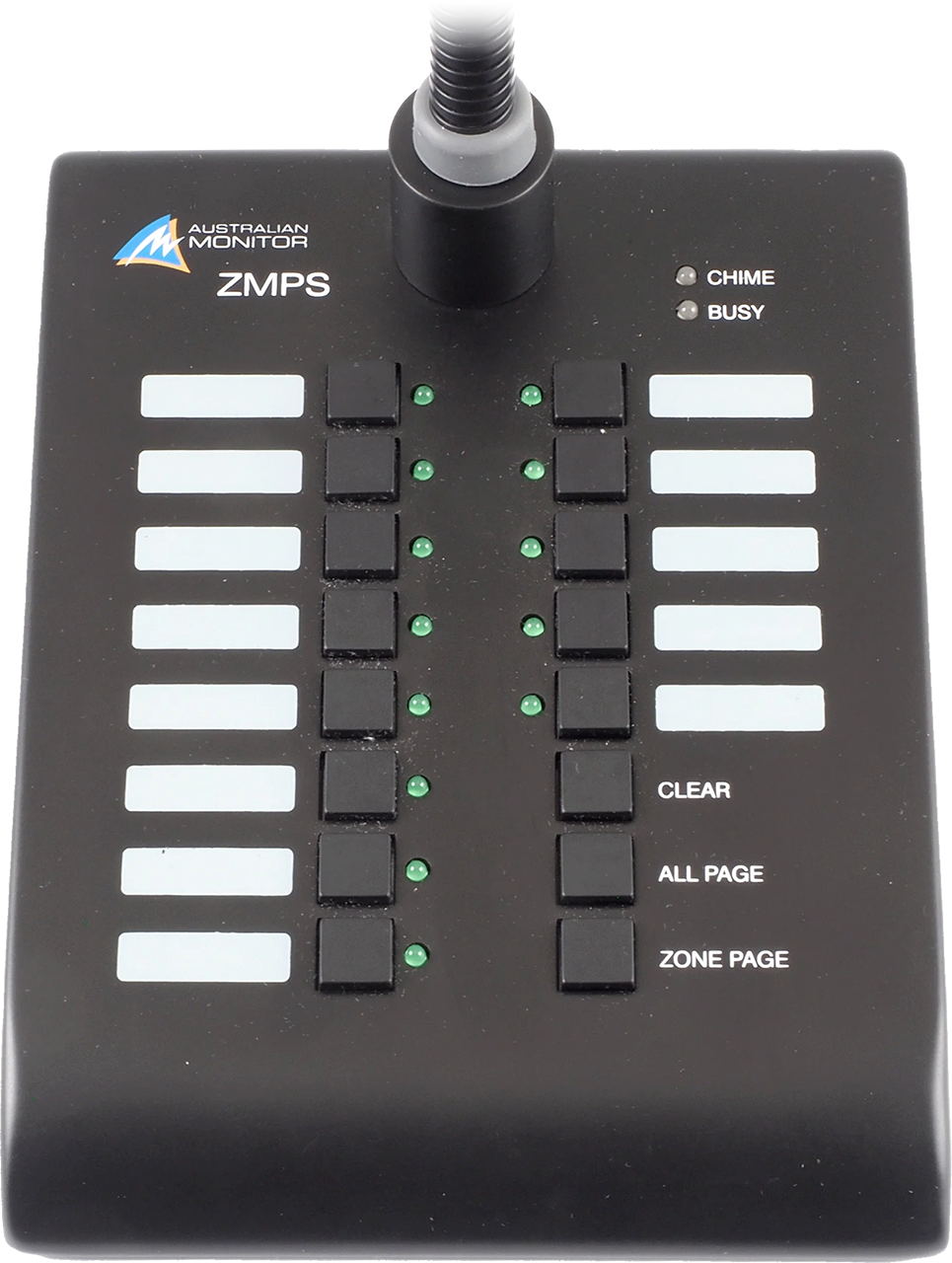

LED indication provides the user with visual feedback of the zones being paged, chime playback and if the zone selected is busy.

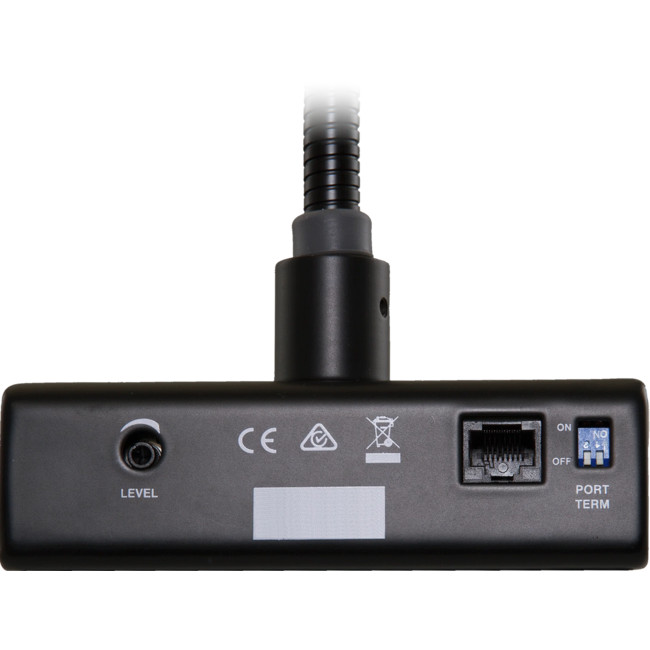

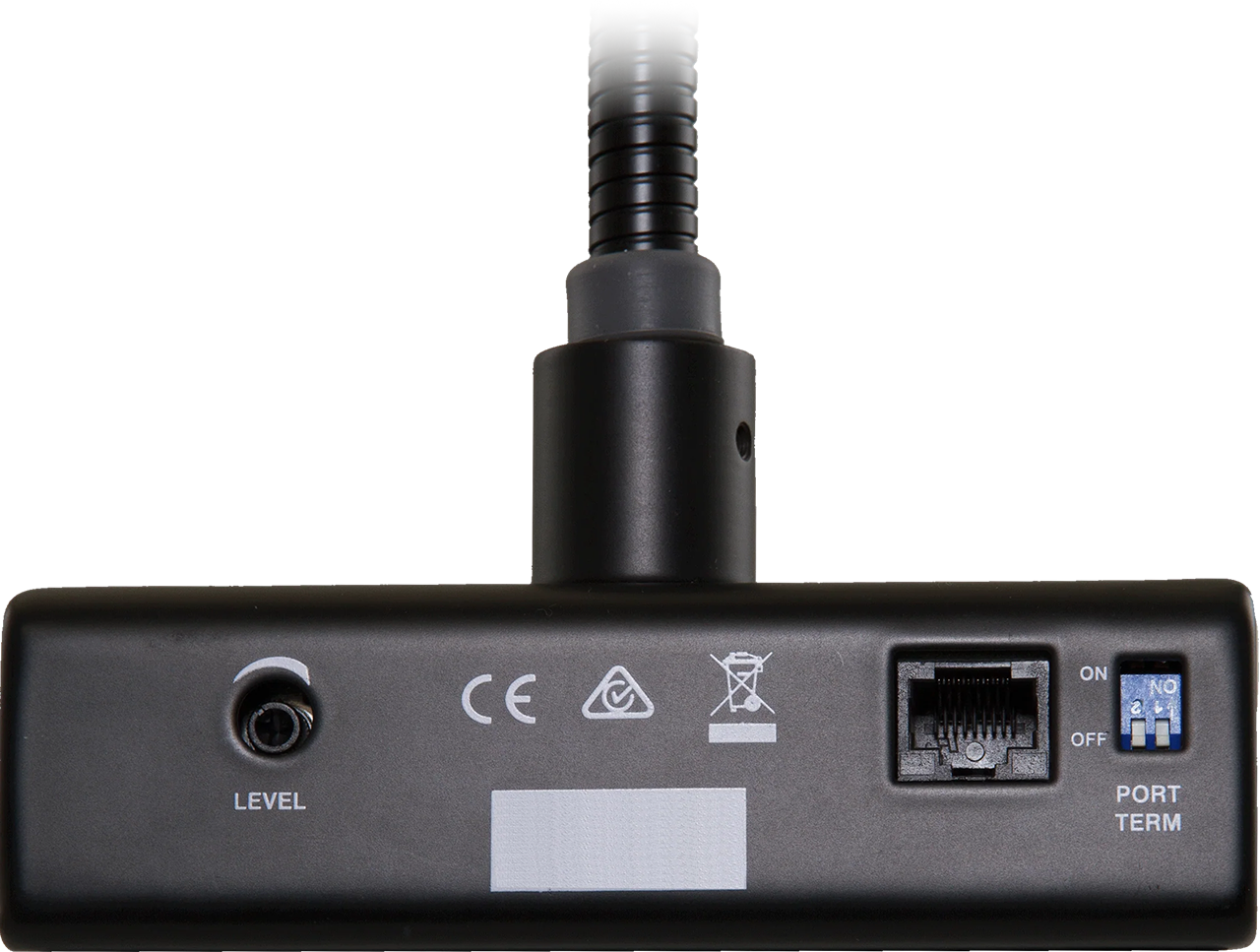

The ZMPS also has ample button label space, a rear microphone gain control and is connected to the ZONEMIX system via a low cost CAT5 cable.

  • Slimline gooseneck microphone
  • 13 programmable buttons
  • Each button can be programmed to perform single zone selection, group zone selection or trigger pre-recorded message playback
  • Internal limiter to guarantee voice clarity
  • Rear panel gain adjustment
  • Connects via low cost Cat 5 cabling

PROGRAMMABLE BUTTONS



The ZMPS has 13 programmable buttons which can be configured, via the ZONEMIX PC Control Software, to the following functions,

  • Single zone select
  • Group zone select
  • Pre-recorded announcement playback

PRE-RECORDED ANNOUNCEMENTS

The ZMPS can trigger pre-recorded announcements from the ZONEMIX SD card slot.
Simply place WAV audio file announcements on an SD card and insert it into the ZONEMIX.
The files can then be selected in the PC Control Software and assigned to a button on a ZMPS paging station.

Zone selection can be pre-programmed with the announcement for single button triggering.
Alternatively, for announcement playback to changing zones, the operator can select the zones before triggering the announcement.

Specifications

Zones Up to 8 Zone Paging Stations Connected N/A
Program Inputs N/A Paging Station P/N ZMPS
Local Inputs N/A Remote Source Control N/A
Tones N/A Mounting Table
Input Voltage 24VDC Warranty 5 years
Product Dimensions
(W x D x H)		 132mm x 174mm x 350mm Shipping Dimensions
(W x D x H)		 350mm x 200mm x 145mm
Net Weight 1.0 Kg Shipping Weight 1.5 Kg
GTIN EAN 9323383020610
