HARDWARE |

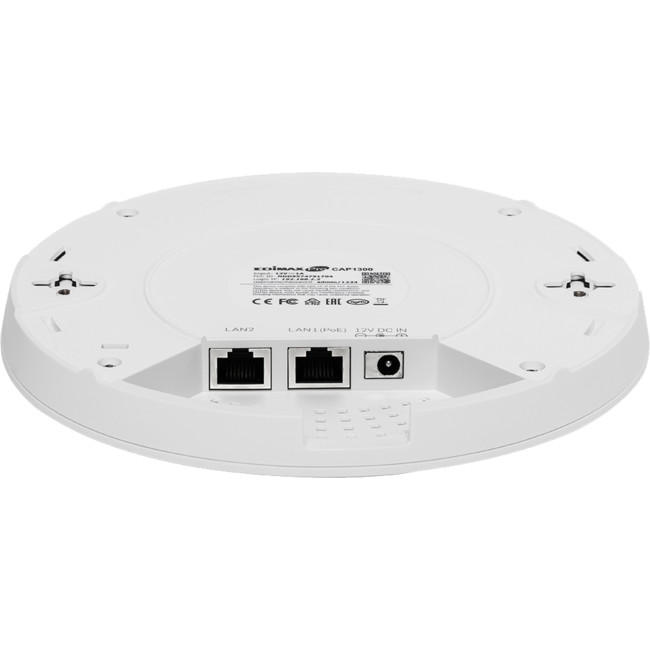

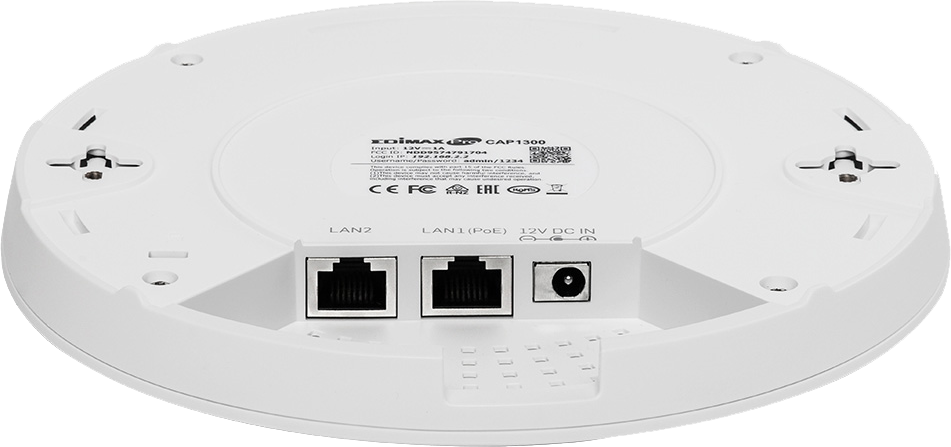

LAN Interface | Giga x 2 |
PoE | LAN1: PoE in |
Antenna | Type: 4 x Built-In PIFA (2 x 2.4GHz, 2 x 5GHz) / Gain: 4dBi (2.4GHz), 5dBi (5GHz) Max. |
Power | DC: 12V / 1A 802.3at (PoE Injector Optional) |
Flash / DRAM | 32MB / 256MB |

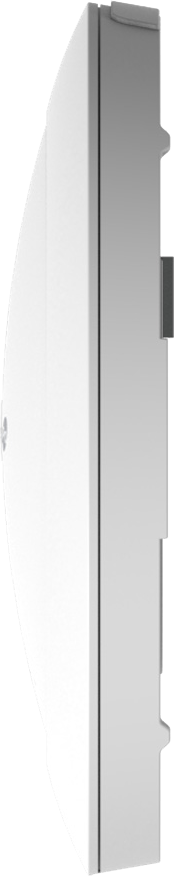

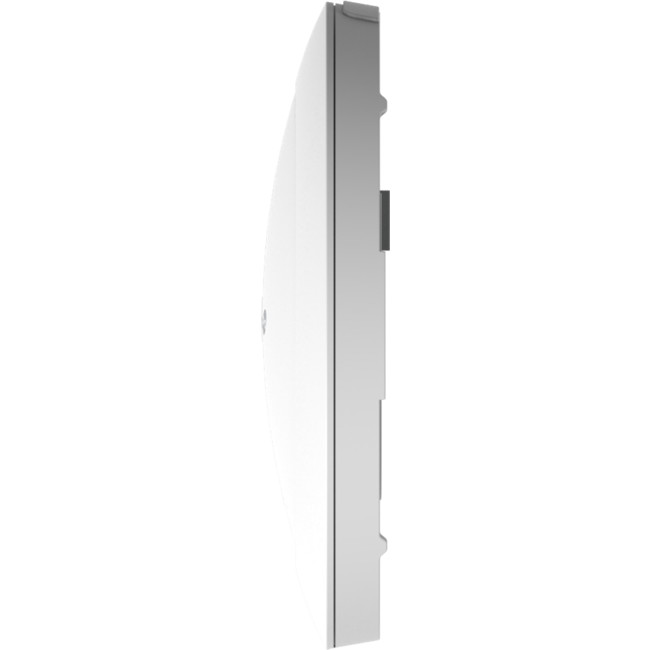

Dimensions | 17.6 (D) x 3.2 (H) cm |
Weight | 342g |
Power Consumption (Full Loading) | 11W |
Mounting | Ceiling |
Reset | Reset |
LED Indicator | 1. Power LED 2. Diag LED |
Environmental Conditions | Operating Temperature: 0°C (32°F) to40°C (104°F) Operating Humidity: 90% or Less |
Power Saving | 802.3az |
Internal Buzzer | Y |
Housing | UL94-5VB Flammability Rating |
Others | Kensington Security Slot & Ceiling/Wall Mount Holes |
WIRELESS |
Standard | 802.11 a/b/g/n/ac Concurrent Dual-Band |
No. of Radios | 2 |
Receiver Sensitivity | ≤ -93Bm |
Certification | CE / FCC |
Band Steering | Y |
AirTime Fariness | Y |
Beamforming | Y |
Number of SSIDs | 3 Default SSIDs (Office, Guest, Device), total up to 32 SSIDs (16 (2.4GHz) 16 (5GHz)) |
PERFORMANCE |
Maximum Data Speed | 400 867Mbps |
Concurrent Clients | Up to 100 Per Radio |
RF SPECIFICATONS |
Frequency Band | •Radio ?: 802.11b/g/n 2.412~2.484(GHz) •Radio ?: 802.11a/n/ac 5.18~5.24(GHz),5.745~5.825(GHz) (The supported frequency band is restricted by local regulations.) |
Operation Channels | •2.4GHz : US/Canada 1-11; 2.412~2.462GHz Europe 1-13; 2.412~2.472GHz Japan 1-14; 2.412~2.484GHz •5GHz : Country dependent for the following ranges: US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz) Band 2: 52?56?60?64;5.260~5.320(GHz) Band 3: 100?104?108?112?116?120?124?128?132?136?140;5.500~5700(GHz) Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz) Europe: Band 1:36, 40, 44, 48; 5.180~5.240(GHz) Band 2: 52?56?60?64;5.260~5.320(GHz) Band 3: 100?104?108?112?116?120?124?128?132?136?140; 5.500~5700(GHz) |
Transmit Power | •802.11b 20dBm@1Mbps 20dBm@2Mbps 20dBm@5.5Mbps 20dBm@11Mbps •802.11g 20dBm@6Mbps 20dBm@9Mbps 19dBm@12Mbps 19dBm@18Mbps 18dBm@24Mbps 18dBm@36Mbps 17dBm@48Mbps 17dBm@54Mbps •802.11gn (2.4G) 20dBm@MCS0/8 19dBm@MCS1/9 19dBm@MCS2/10 18dBm@MCS3/11 18dBm@MCS4/12 17dBm@MCS5/13 16dBm@MCS6/14 16dBm@MCS7/15 | •802.11a 19dBm@6Mbps 19dBm@9Mbps 18dBm@12Mbps 18dBm@18Mbps 17dBm@24Mbps 17dBm@36Mbps 16dBm@48Mbps 16dBm@54Mbps •802.11an(5G) 19dBm@MCS0/8 19dBm@MCS1/9 18dBm@MCS2/10 18dBm@MCS3/11 17dBm@MCS4/12 17dBm@MCS5/13 16dBm@MCS6/14 16dBm@MCS7/15 •802.11ac 18dBm@MCS0 18dBm@MCS1 18dBm@MCS2 17dBm@MCS3 17dBm@MCS4 17dBm@MCS5 16dBm@MCS6 16dBm@MCS7 15dBm@MCS8 14dBm@MCS9 |
Receiver Sensitivity | •802.11b ≤-93dBm@1Mbps ≤-85dBm@11Mbps •802.11g ≤-86dBm@6Mbps ≤-70dBm@54Mbps •802.11gn (2.4G) ≤-86dBm@MCS0 ≤-62dBm@MCS8 ≤-57dBm@MCS9 | •802.11a ≤-85dBm@6Mbp ≤-68dBm@54Mbps •802.11an(5G) ≤-85dBm@MCS0 ≤-64dBm@MCS7 •802.11ac ≤ -85dBm@MCS0 ≤ -61dBm@MCS8 ≤ -54dBm@MCS9 |
SECURITY |
Encryption | WEP / WPA / WPA2 |
Wireless L2 Isolation | Y |
Station Isolation | Y |
IEEE 802.1x Authenticator | Y |
EAP Authentication | PEAP |
Hidden SSID | Y |
MAC Address Filter | Y |
Wireless STA | Y |
Rogue AP Detection (w/ NMS) | Y |
SOFTWARE |
Wireless Mode | AP / WDS AP / WDS Bridge / Client |
802.1q VLAN | Y (VID = 1-4095) |
Spanning Tree | RSTP |
QoS | WMM (802.11e) Max Associated Station No. |
Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) |
DSCP (802.1p) | Y |
Multicast Rate up to 54Mbps | Y |
MANAGEMENT |
Configuration | HTTP / HTTPS CLI (Telnet, SSH) |
Auto-Channel | Y |
SNMP Private MIB | Y |
MASTER AP FUNCTIONS |
Group Management | Wireless Settings, LAN Settings, Firmware Upgrade, Guest Account Setting, Office Employee Account Settings, Device ACL Setting |
RADIUS Server | Y (Up to 256 Accounts for Office Network) |
Captive Portal | Y (Up to 128 Accounts for Guest Network. Supports Customized Company Logo, Message & Terms of Use and Account Ticket Generation.) |
SMS Authentication | Y (Supports Pivo & Stream Telecom) |
Device Network | Y (Up to 256 Mac Address for Access Control) |
E-MAP | Y (Supports Multiple E-MAP Displays Wi-Fi Coverage, Signal Strength, Number of Clients and AP Loading) |
Setup Wizard | Y (Easy 7-Step to Finish All Initial Settings) |
Status Viewing | AP, Wi-Fi Client, Office Account, Guest Account and System Status |
Account File Format | CSV File (Import & Export) |
PACKAGE CONTENTS |

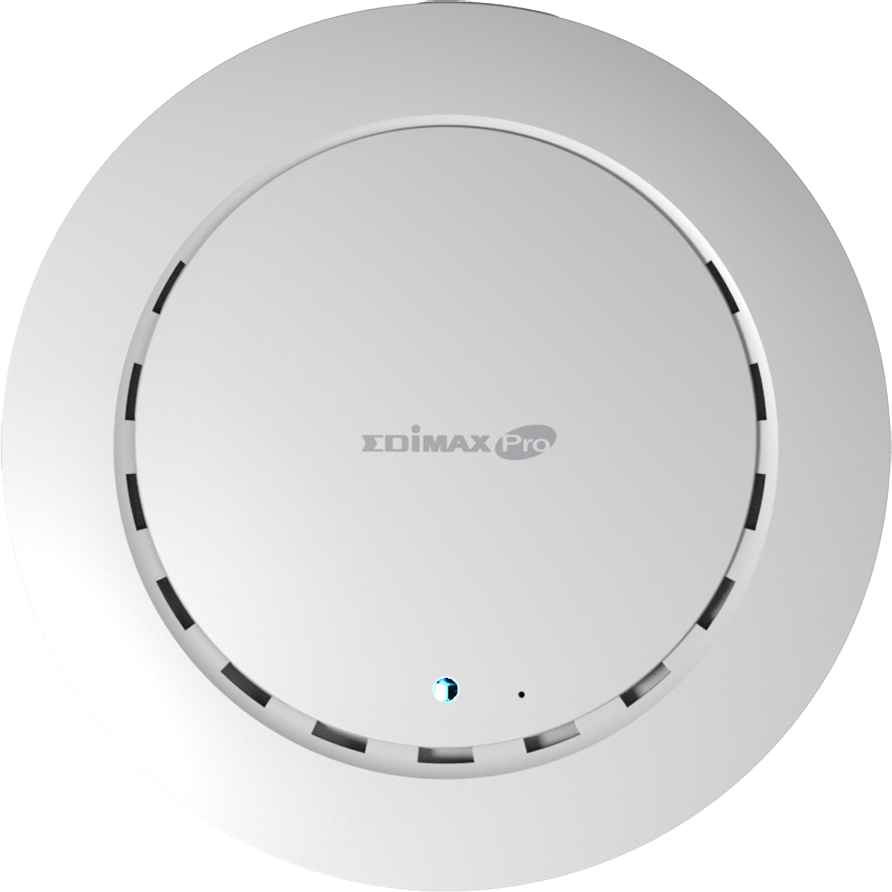

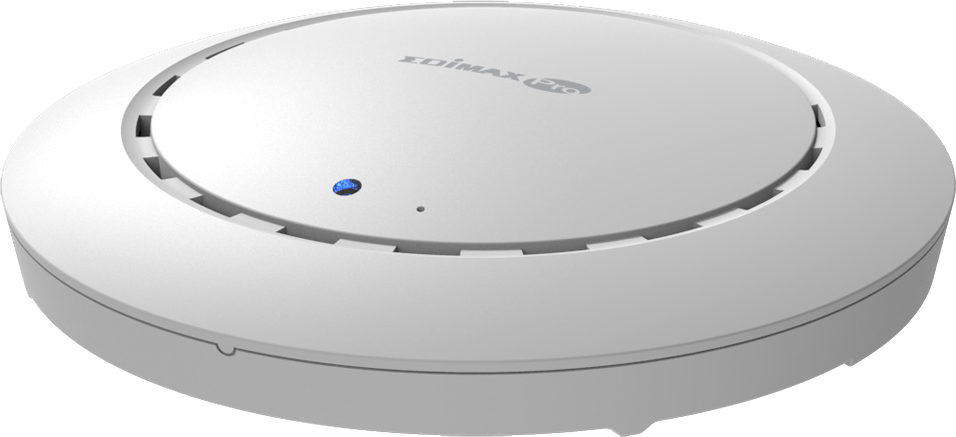

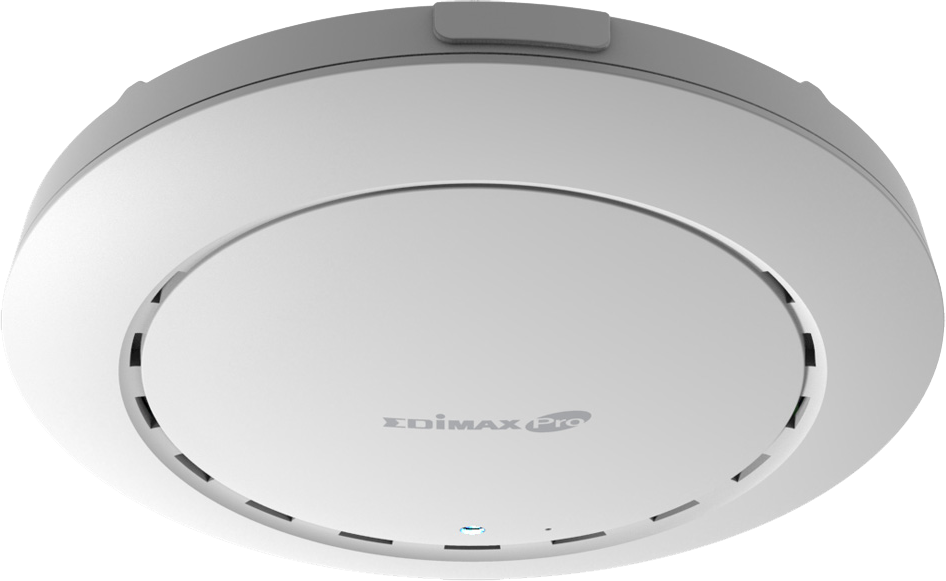

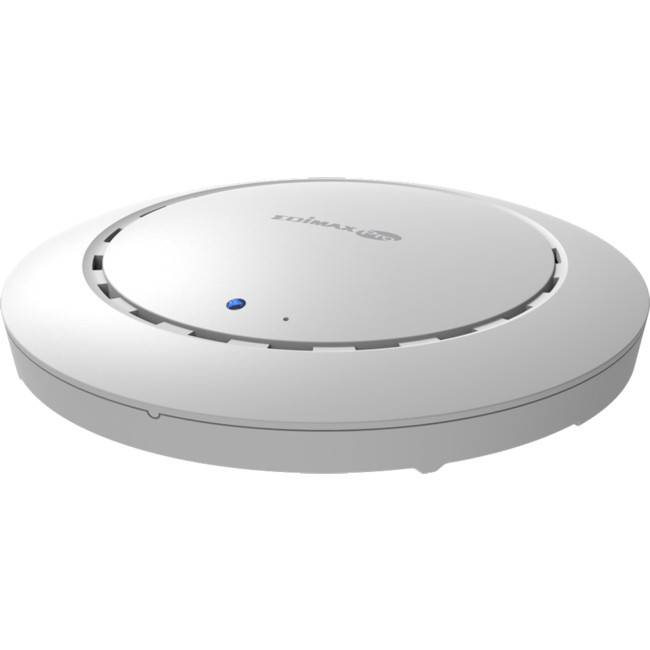

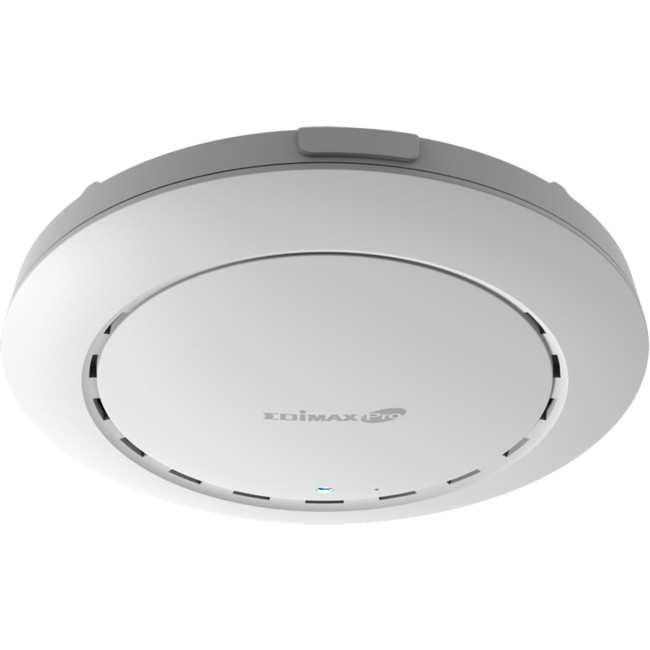

Access Point | Master Access Point for Office 1-2-3 Wi-Fi System |
Mounting Bracket | Ceiling-Mount & T-rail Mount Bracket Kit |
Power Adapter | 12V / 1A Power Adapter |
Ethernet Cable | Ethernet Cable |
Quick Installation Guide | Printed Quick Installation Guide |
OPTIONAL ACCESSORIES |
CAP1300 Office 1 | Add-on Access Point |
GP-101IT | IEEE802.3at Gigabit PoE Injector |
