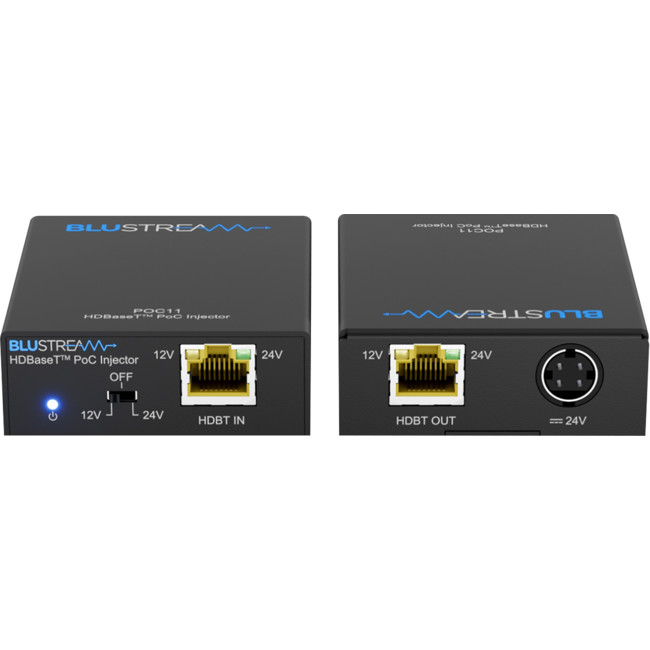

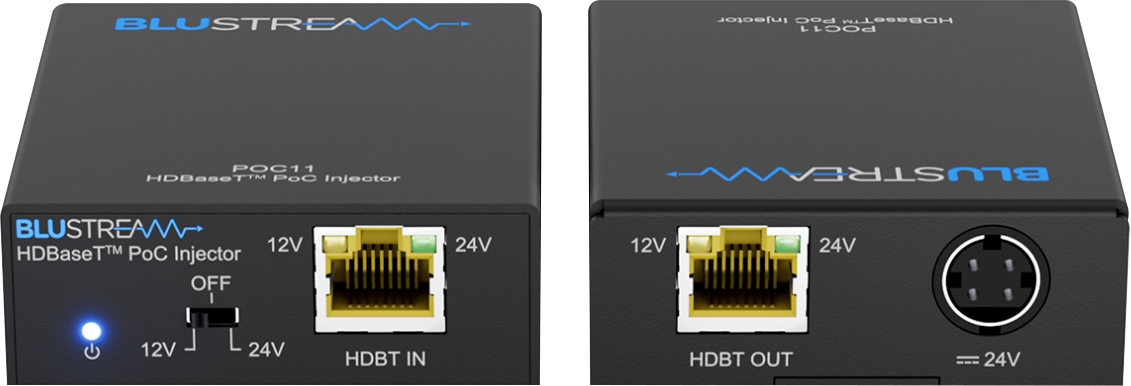

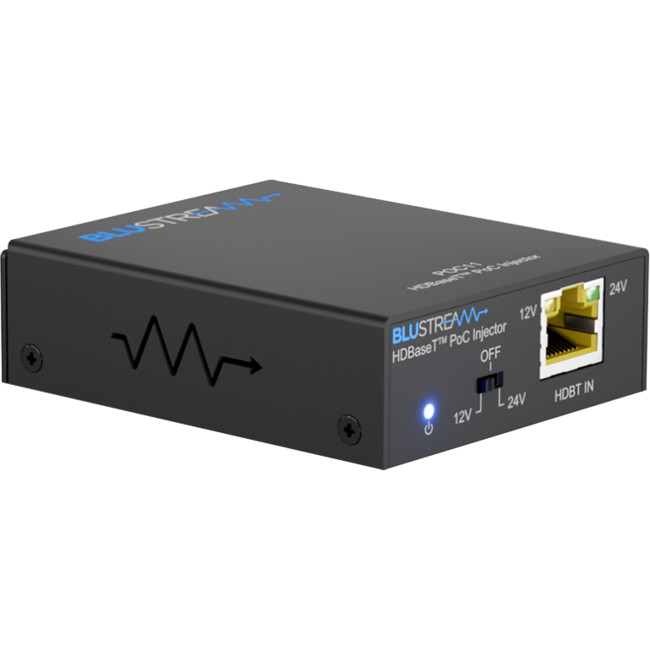

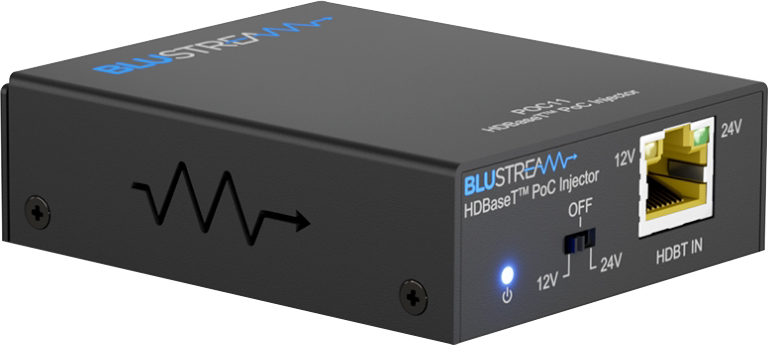

Blustream POC11 HDBaseT™ PoC Injector

The POC11 HDBaseT™ PoC injector is designed to send remote power to Blustream HDBaseT products that operate using Power over Cable (PoC). When placed within an HDBaseT Transmission line, it allows a Blustream HDBaseT Transmitter to be remotely powered via selectable 12V or 24V DC.


PoC 4K 18Gbps Selectable Voltage Up to 100m Cable Distance

Key Features

  • In-line PoC (Power over Cable) injector to power Blustream HDBaseT Transmitter products
  • Compatible with all Blustream HDBaseT™ video solutions (HDBaseT spec 1.0, 2.0 and 3.0)
  • Supports 18Gbps 4K signals, multi-channel audio formats, and HDCP 2.2
  • Supports up to 100m cable distance *
  • Selectable voltage between 12V or 24V

*Cable distance subject to location of POC11, and Blustream HDBaseT product being installed. POC11 to TX distance max 30m. POC11 to RX distance max 70m. Please refer to “PoC Distance Limitations” section for further details.
**Please note, the POC11 is designed for use with Blustream products and may not work with other HDBaseT extenders on the market.


Specifications

Video Inputs1 × HDBaseT™ RJ45 connection
Video Outputs1 × HDBaseT™ RJ45 connection
Voltage Selection1 × 3-step switch
Casing Dimensions (W×H×D)65mm × 80mm × 24mm
Shipping Weight0.5kg
Operating Temperature0°C to +40°C (32°F to 104°F)
Storage Temperature−20°C to +60°C (−4°F to 140°F)
Power Supply24V/1.25A DC 4-pin DIN

Box Contents

1 × POC11
1 × Mounting Kit
1 × 24V / 1.25A DC Power Supply
1 × Quick Reference Guide
