Audac Luna F Unified Flexible and scalable audio 1RU Matrix processor
Flexible and scalable audio distribution.
Offering highly flexible and scalable system solutions for audio distribution from medium-sized to large enterprise solutions.
Key Features
Flexible network audio matrix processor
- 8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
- 24 fully flexible GPIO in- or outputs
- Up to 64 x 64 x Dante/ AES67 channels (16 x 16 included)
- Acoustic Echo Cancellation (4 channels) – Optional add-on
- Event Handler (trigger & timed event scheduling)
- Auto-update (OTA) feature
- WaveTune™ & WavePreset™ audio processing
- Superior sound quality & low latency
- Compatible with all AUDAC network control devices (incl 3 party equipment)
- 16 Stereo or up to 32 mono flexible zones (all combinations possible)
The LUNA-F is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the largest enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSP's (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.

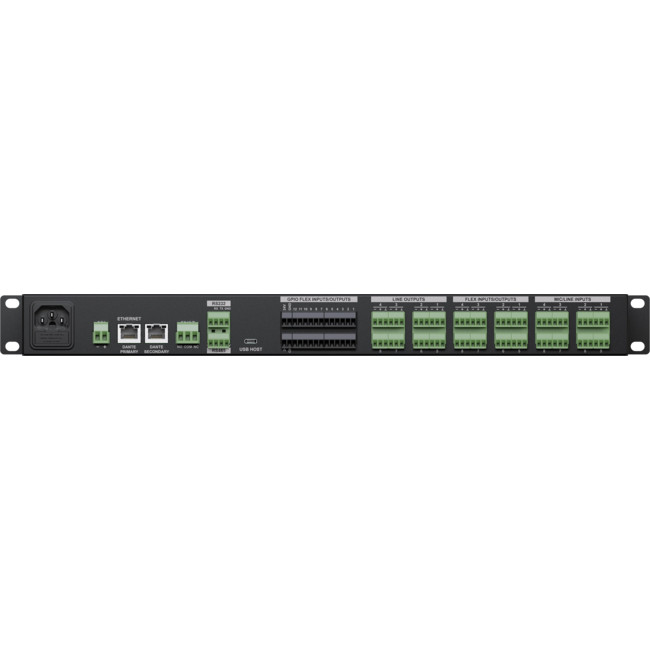

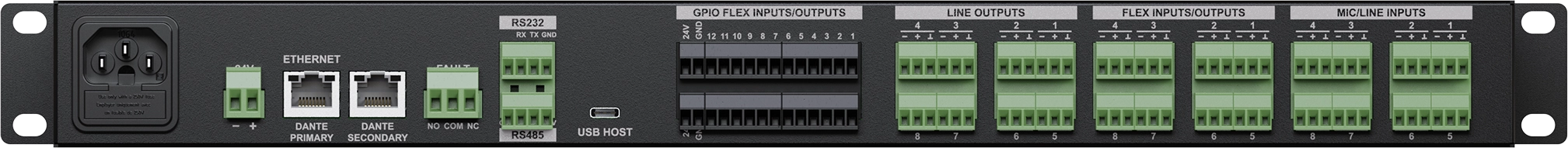

It includes 8Mic/Line Inputs, 8 flex channels that can be switched between 8 Mic/Line Inputs or Line level output, and 8 Line level outputs. Additionally, up to 64x64 Dante™/AES67 I/O Channels are available with primary and secondary ethernet ports, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O units with redundancy.
The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.
The internal Linux core brings the entire control of this system and family members together, while also accommodating messaging, event scheduling, and implementation possibilities for further Linux-based functions. Besides the full network control, other options like RS-232 and RS-485 (available from end of July 2024) are also implemented for third-party control. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™.
Seamless adaptation for diverse applications
Superior sound quality & low latency
Thanks to the superior sound processing and flexibility of the Atellio family, it provides seamless adaptation for diverse applications, from commercial installations to live performances where low latency and a high sound quality is required.
Simplified design, management & system control platform
AUDAC Touch™ compatible
Using the AUDAC Touch™ platform on smart devices guarantees total system control and configuration from any device at any location and at any time. The AUDAC Touch™ is available for free to download.
Download Touch™ for free
16 stereo or up to 32 mono flexible zones
A world of possibilities
Fully flexible mapping of the signal path allows you to easily distribute audio to up to 16 stereo zones or up to 32 mono zones (all combinations possible).
AUDAC & 3rd party equipment
Compatible with all network control devices
The complete Atellio family includes Dante/AES67-enabled amplifiers, I/O wall panels, paging units, processors, and network-enabled control panels all compatible with each other and even 3rd party devices
Flexible architecture
In today's fast-paced world, the ability to quickly and efficiently manage AV equipment is more important than ever before. Therefore, we want to evolve from a closed architecture, not to a completely open one, but to a flexible settings panel. Predefined settings & routing in a fully customisable and controllable view.
Specifications:
| INPUTS | Mic / Line inputs | 8 |
| | Flex inputs / outputs | 8 |
| | GPIO Inputs | 24 (Flex) |
| | USB Inputs (Type C) | Front (file transfer) |
| | | Rear (file transfer) |
| OUTPUTS | Line outputs | 8 |
| | GPIO Outputs | 24 (Flex) |
| | Fault | NO & NC relay contact |
| NETWORK AUDIO I/O | | 16x16 Dante™/AES67 I/O Channels (Up to 64x64 Channels with SL-NAC8) |
| ZONES | | 32 Mono |
| | | 16 Stereo |
| CONFIGERABLE SETTINGS | ALC (Automatic Gain control) | Yes |
| | AEC (Acoustic Echo cancellation) | Yes (optional) |
| | Integrated event scheduler | Yes |
| | Phantom power on inputs | 48VDC |
| | WaveTune (input & zone) | 7-band EQ |
| | WavePreset (output) | 12xBiquad LP HP |
| | Delay (output) | 2000 ms (target) |
| | Mono / stereo zones (configurable) | Yes |
| | Mixing | Yes |
| | Talkover | Yes |
| | Paging | Yes |
| | Priorities | 4 each zone |
| | Integrated Generator | Sine or Pnoise or Wnoise |
| | Output Volume Offset | Yes |
| | Others | Antiphase, bass & treble, input volume |
| DSP PROCESSOR | | Dual core SHARC |
| | | ARM Linux core |
| | | 2 Dedicated co-DSP |
| CONFIGERATION | | Audac Touch™ |

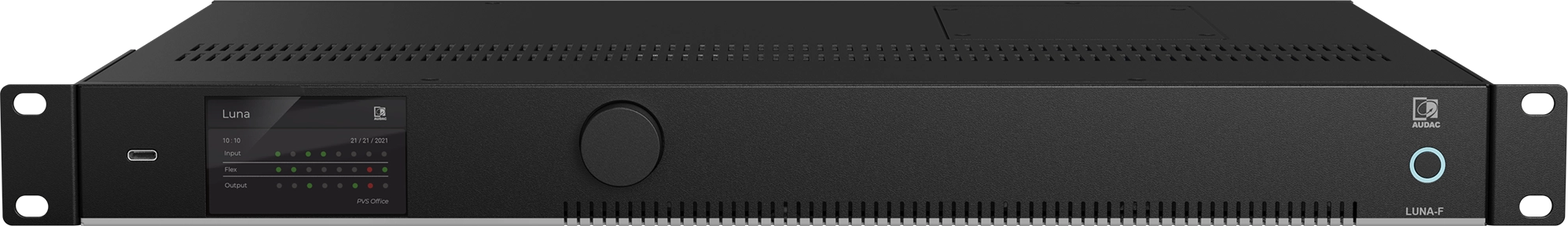

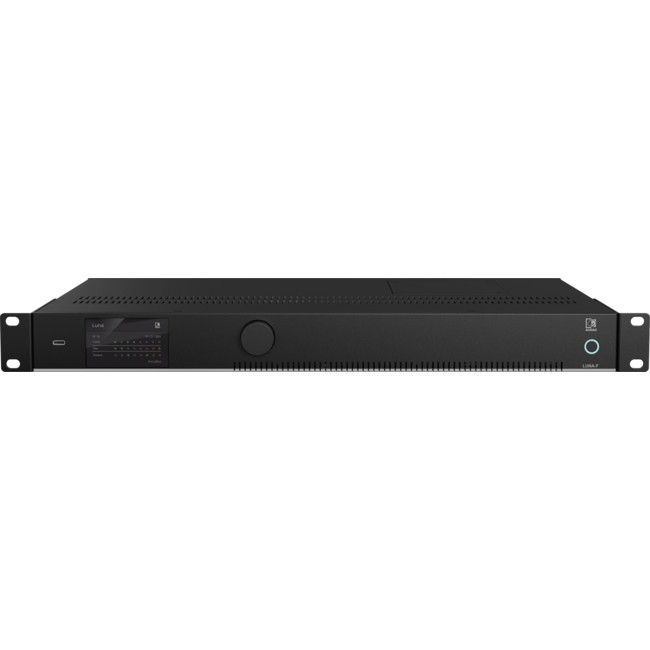

| CONTROLS & INDICATORS | Front Panel | 2.8” LCD Display with rotary encoder |
| | Interface Ports | RS-232 |
| | | RS-485 |
| | | 2 x Gigabit Ethernet (RJ45 primary & secondary) |
| POWER SUPPLY | | 100 ~ 240 V AC / 50 ~ 60 Hz |
| | | 24 VDC |
| PRODUCT FEATURES | Dimensions | 482 x 44 x 335 mm (W x H x D) |
| | | |
| | Mounting | 19" |
| | Unit Height | 1 HE |
| | Construction | Steel |
| | Colours | Black (RAL9005) |
Recommended Applications
- Corporate
- Sporting Facilities
- Hotels
- Bars and Restaurants
- Education
- Government Facilities
Compare the LUNA series
| | LUNA F | LUNA U |
| Mic / Line Inputs | 8 | 12 |
| Flex Inputs / Outputs | 8 | - |
| Line outputs | 8 | 8 |
| GPIO | 24 Flex | 12 IN / 12 OUT |
| Dante ASE67 Networked audio channels | Standard 16x16 Software extension 8x8 (SL-NAC8) Max Channel count 64x64 | Standard none Hardware (W/Software) Extension 8x8 {ANM88} Additional Software Extension 8x8 {SL-NAC8} Max Channel Count 32x32 |
| AEC ( Acoustic Echo Cancellation) | Optional Licence (4ch) { SL-AEC4 } (Max 4ch / Luna F) | |
| Control Interface Ports | Ethernet (Primary & Secondary), RS-485 & RS-232 | Ethernet Primary RS-485 & RS-232 |
