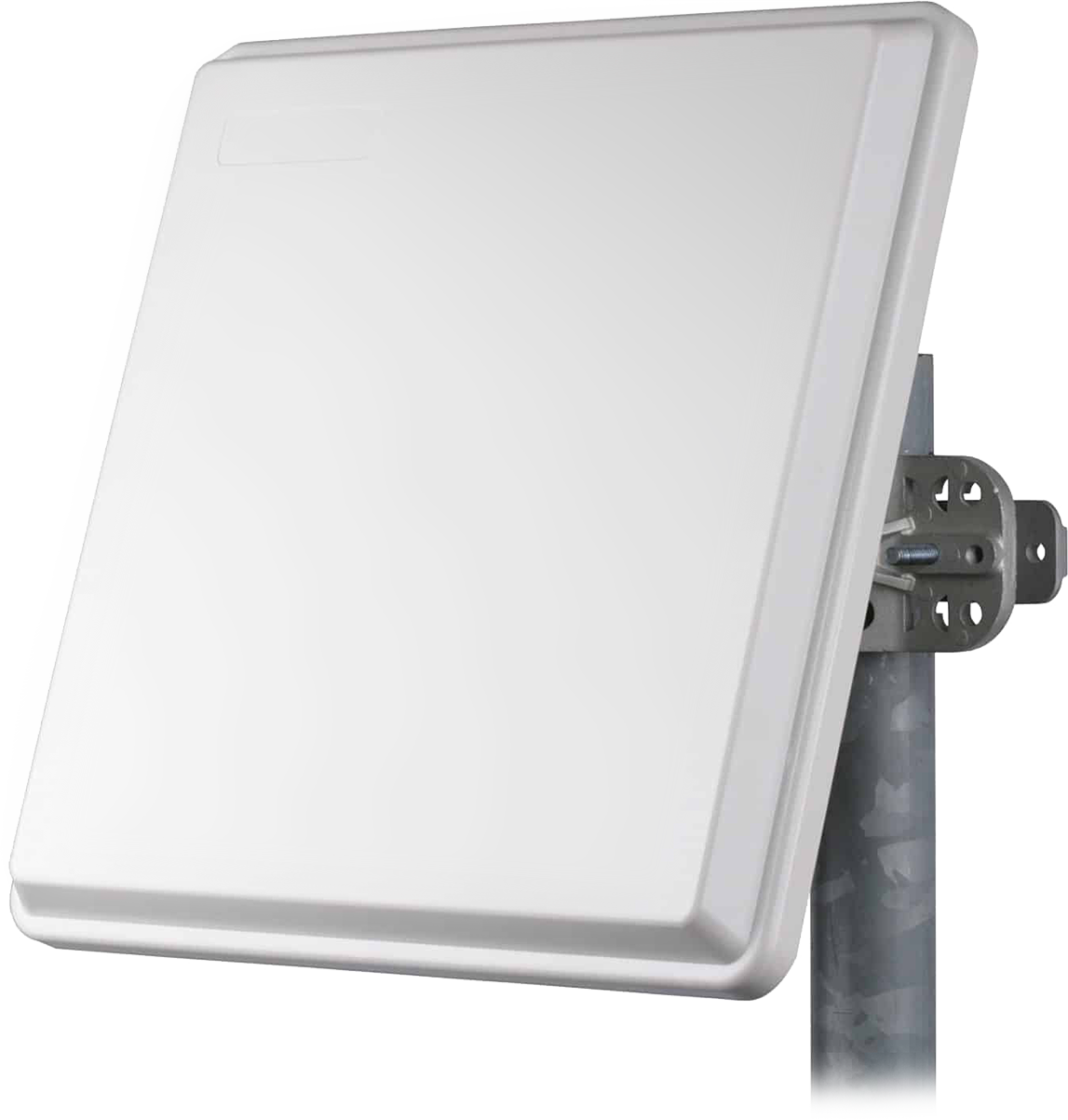

ANT-MA-00004- MARS Panel Antenna 5dBi, 698-2700MHz Mount
- Provides a 5dBi gain for 698-960MHz
- Provides a 6.5dBi gain for 1710-2700MHz
Up-To-Date Multi Band Panel Antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS and Bluetooth.
The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment andcan be easily used either for Indoor or Outdoor Applications and features different mounting options.
Provides a 5dBi gain for 698-960MHz
Provides a 6.5dBi gain for 1710-2700MHz
Up-To-Date Multi Band Panel Antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS and Bluetooth.
The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment.
The antenna can be easily used either for Indoor or Outdoor Applications and features different mounting options.
MARS Multi Band Panel Antenna Data Sheet
ELECTRICAL SPECIFICATIONS
- Frequency Range 698-960 / 1710-2700MHz
- Impedance 50 Ohm
- VSWR <2-1.7
- Gain 5/6.5 dBi
- Max Input Power 10W
- Polarization: Linear & Vertical
- 3 dB Beam-Width, H-Plane, typ. 130/80
- 3 dB Beam-Width, E-Plane, typ. 70/45
MECHANICAL SPECIFICATIONS
- Dimensions 231 x 215 x 37.5 mm
- Connector N-Type, Female at bottom (can be installed upside down)
- Weight 500g

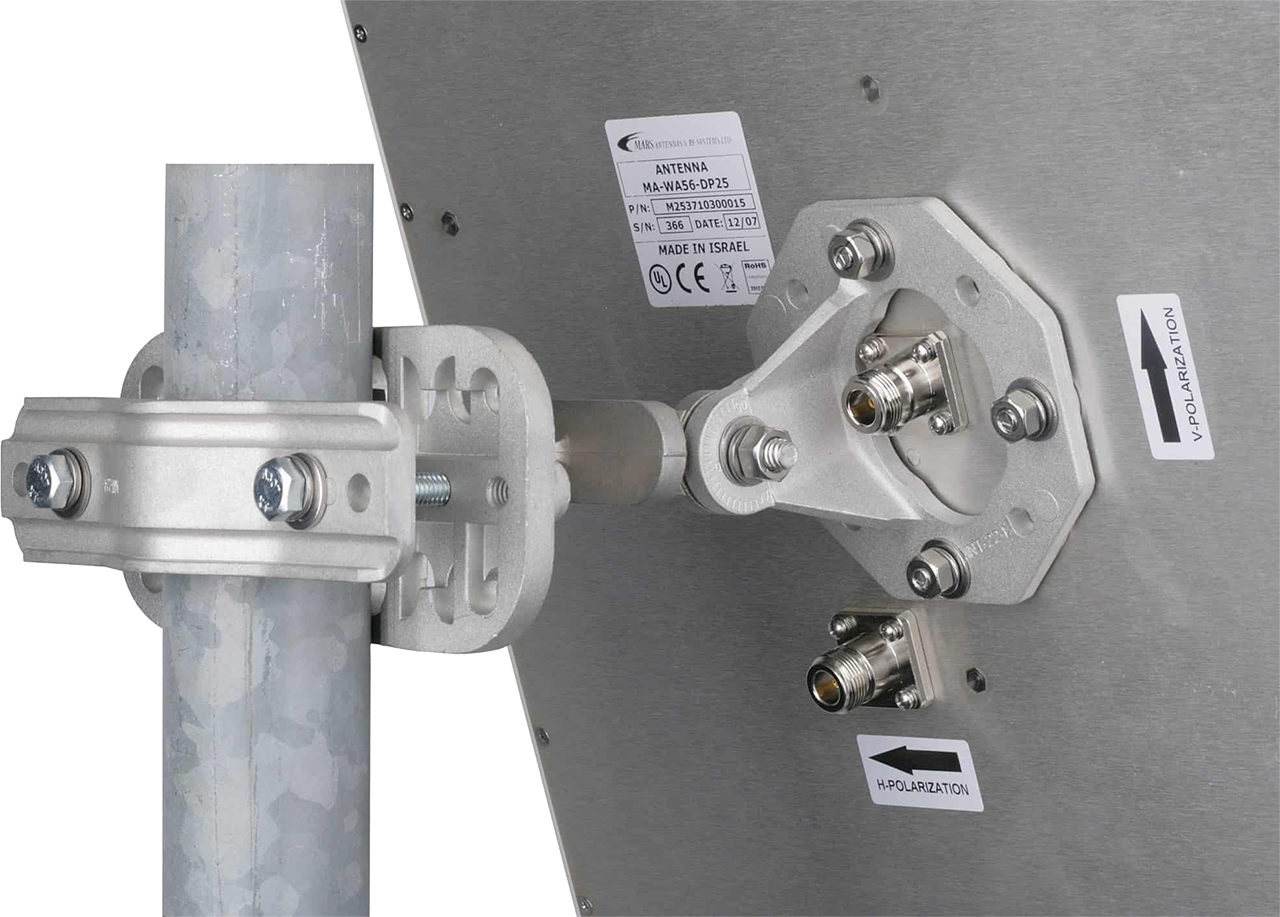

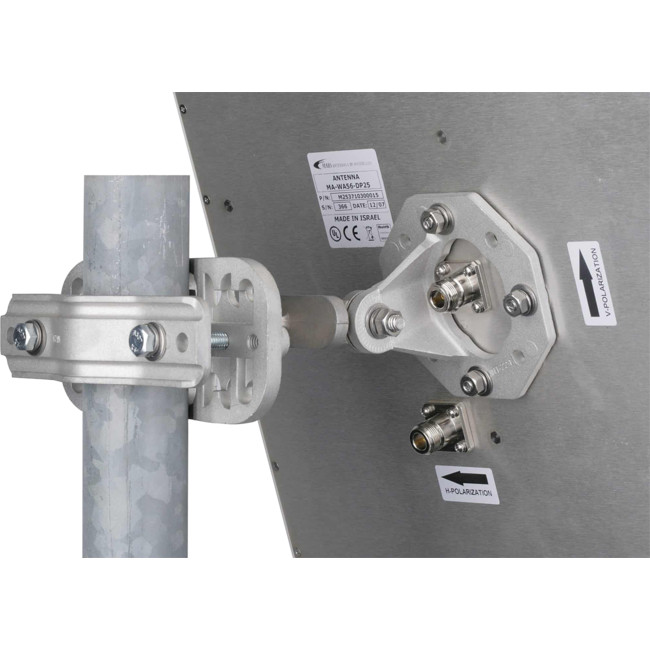

- Mounting Wall Mountable and Az/El Adjustable MNT-22 Mount
- Radome UV Protected Polycarbonate
