Name: UT202A+ TRUE RMS DIGITAL CLAMP METER AUTO RANGE 600A NEUTRAL LIVE WIRE TEST
Brand: UNI-T
SKU: 44488228
Price: 39.95 AUD
Availability: InStock

AUTO RANGE 600A NEUTRAL LIVE WIRE TEST

Code: 44488228

0.4000 kg

6935750520277

EACH

In Stock

$39.95 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

The UT202A is a true RMS AC clamp meter, it is designed according to EN61010-1 and CAT II 600V/ CAT III 300V safety standards, and it comes with full-featured protection which ensures users a safe and reliable measurement experience. Aside from all the standard features of an AC clamp meter, it includes plenty of additional safety features such as high voltage frequency measurement, fast capacitance measurement, audio-visual NCV detection, and especially live/neutral wire detection.

Features

True RMS measurement;
Audio-visual NCV detection;
Maximum measurable voltage: 600V;
High voltage frequency range: 10Hz~10kHz;
Current 400A frequency response: 50Hz~100Hz;
Current frequency measurement function;
60mF large capacitance measurement, and low voltage frequency (10MHz);
Live/neutral wire measurement functions;
LCD backlight and large screen and display digits, fast refresh rate (3 times/s);
Response time for capacitance measurement: less than 3s for ≤1mF; about 6s for ≤10mF; about 8s for ≤ 60mF;
Overvoltage and overcurrent alarm functions, Full-featured false detection protection for up to 600V (30kVA) energy surge;
Automatic power-saving function. The power consumption of the meter is about 1.8 mA and the consumption of sleep state is <11uA, which effectively extends the battery life up to 400 hours.

Specifications

Specifications	Range	UT201	UT202	UT202A	UT203	UT204
AC current (A)	400A	±(2% 10)	±(2% 10)		±(2.5% 5)
AC current (A)	600A			±(2% 10)		±(2.5% 5)
AC current frequency (Hz)	50Hz~100Hz	±(1% 5)	±(1% 5)	±(1% 5)
DC current (A)	400A				±(2.5% 5)
DC current (A)	600A					±(2.5% 5)
AC voltage (V)	600V	±(0.8% 5)	±(0.8% 5)	±(0.8% 5)	±(0.8% 5)	±(0.8% 5)
AC voltage frequency(Hz)	10Hz~10kHz	±(1% 5)	±(1% 5)	±(1% 5)
AC voltage frequency(Hz)	10Hz~60kHz				±(0.5% 2)	±(0.5% 2)
DC voltage (A)	600V	±(0.5% 2)	±(0.5% 2)	±(0.5% 2)	±(0.5% 2)	±(0.5% 2)
Resistance (Ω)	40MΩ	±(0.8% 2)	±(0.8% 2)		±(0.8% 2)
Resistance (Ω)	60MΩ			±(0.8% 2)		±(0.8% 2)
Capacitance (F)	4mF		±(4% 5)
	40mF				±(4% 5)
	60mF			±(4% 5)		±(4% 5)
Temperature (°C)	-40°C~1000°C		±(1.5% 5)			±(1.5% 5)
Frequency (Hz)	10Hz~10MHz			±(0.1% 4)	±(0.1% 4)	±(0.1% 4)
Features
Display count		4000	4000	6000	4000	6000
Auto range		v	v	v	v	v
Jaw opening		28mm	28mm	28mm	28mm	28mm
True RMS		v	v	v	v	v
NCV		v	v	v	v	v
Live wire test				v		v
Continuity test		v	v	v	v	v
Diode		v	v	v	v	v
MAX/MIN		v	v	v	v	v
Relative mode			v	v	v	v
Zero mode					v	v
Data hold		v	v	v	v	v
Low battery indication		v	v	v	v	v
Auto power off		v	v	v	v	v
General Characteristics
Power	AAA 1.5V battery (R03) x 2
Display	37mm x 25mm
Product color	Red and grey
Product net weight	UT201 /UT202 /UT202A :248g; UT203 /UT204 :235g
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, Themocouple (UT202 /UT204 )
Standard individual packing	Gift box, Carrying bag, English manual

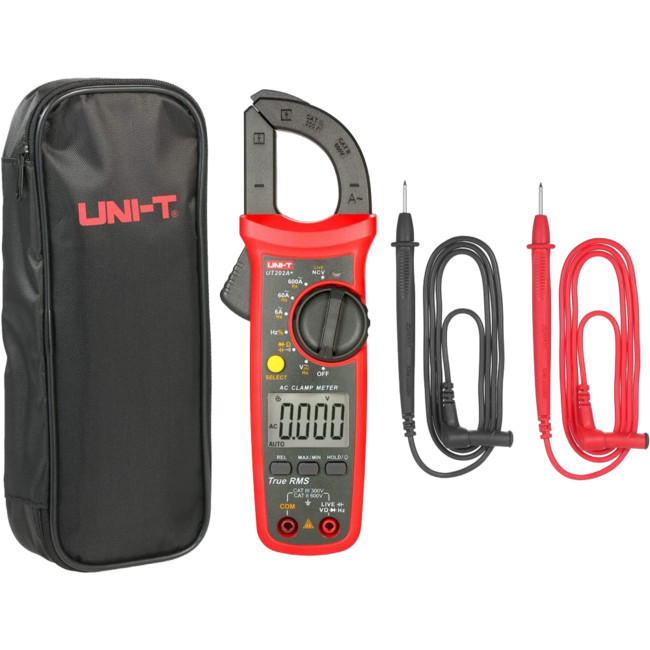

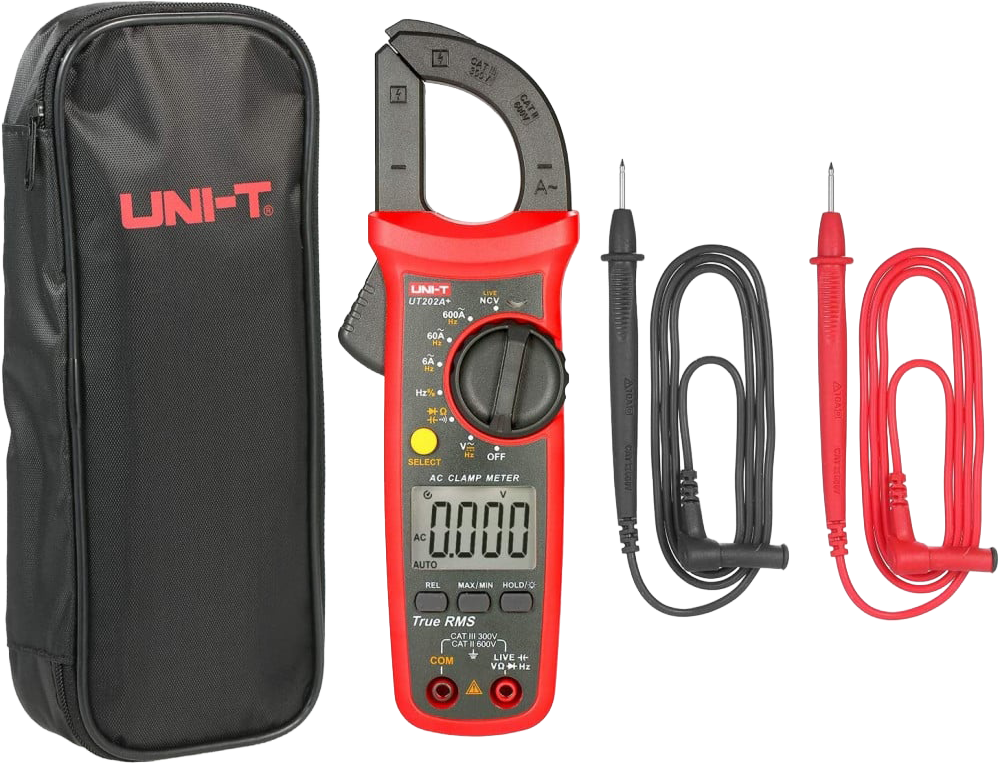

What is in the box?

UT202A x 1pc
User Manual x 1pc
Test Leads x 1pair
Carry bag x 1pc
AAA battery x 1pair

UT202A Manual PDF file

UT202A Datasheet PDF file
