HD11CTRL-V2 HDMI INLINE CONTROLLER WITH TCP/IP, IR, RS-232,

Blustream HD11CTRL-V2 - HDMI In-line IP Control Module

Our HD11CTRL-V2 HDMI in-line controller is a innovative single zone automated control solution. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes.

The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K.

The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4.

Key Features

• Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro

• Supports HDMI 2.0 18Gbps specification including HDR

• Supports resolutions up to 4K UHD 60Hz 4:4:4

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)

• Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues

• Automatic display control via CEC, RS-232, IR or IP

• IR learning up to 30 IR commands

• Relay control for interface to third party devices such as projector screens

• Signal sense input for connection from third party devices such as sensors or switches

• HDCP 2.2 compliant with advanced EDID management

• In-built web-GUI for configuration and control

Specifications

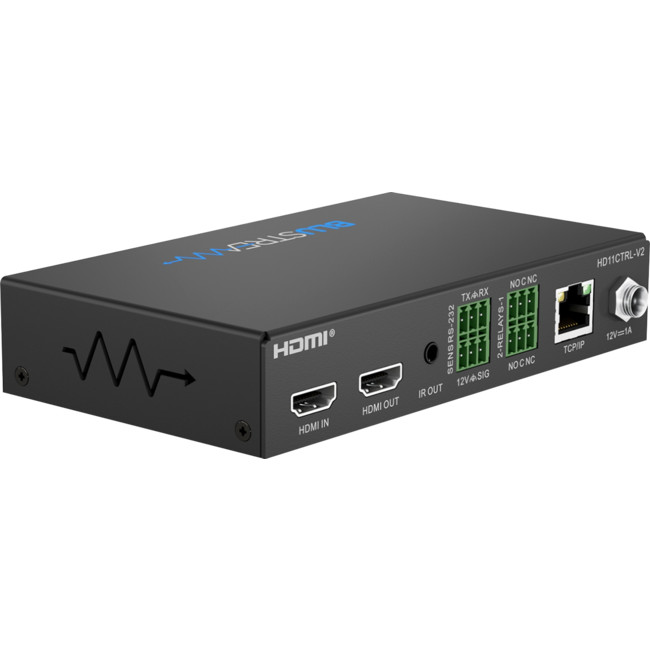

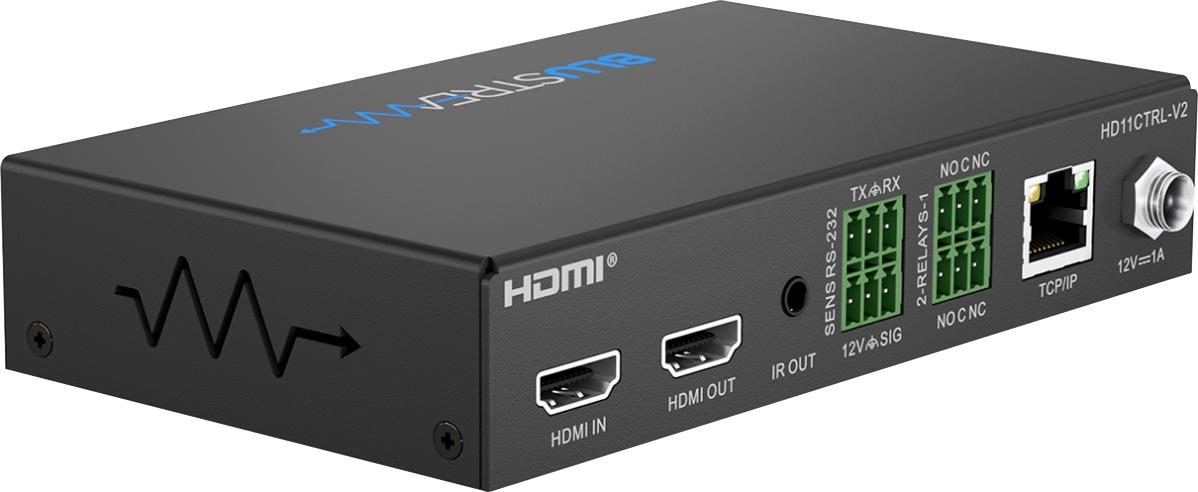

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• TCP/IP Control Port: 1 x RJ45, female

• IR Output Port: 1 x 3.5mm mono jack

• Relay Control: 2 x 3-pin Phoenix connector

• Sensor Input: 1 x 3-pin Phoenix connector

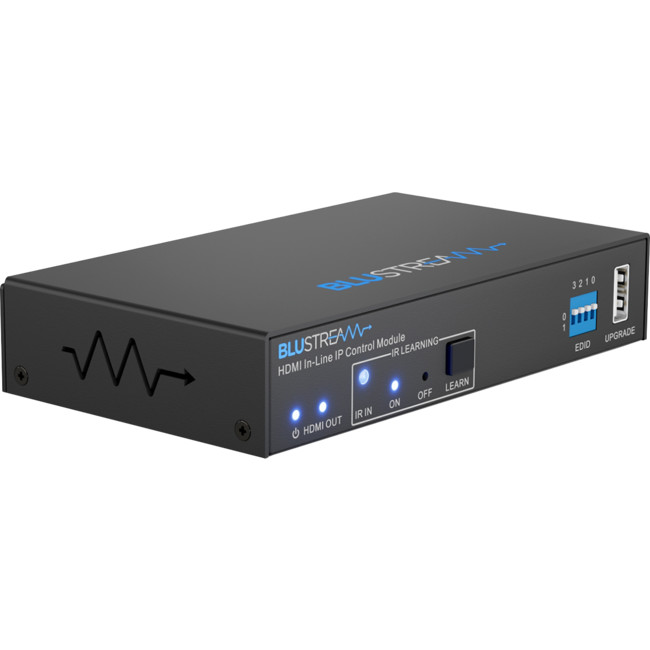

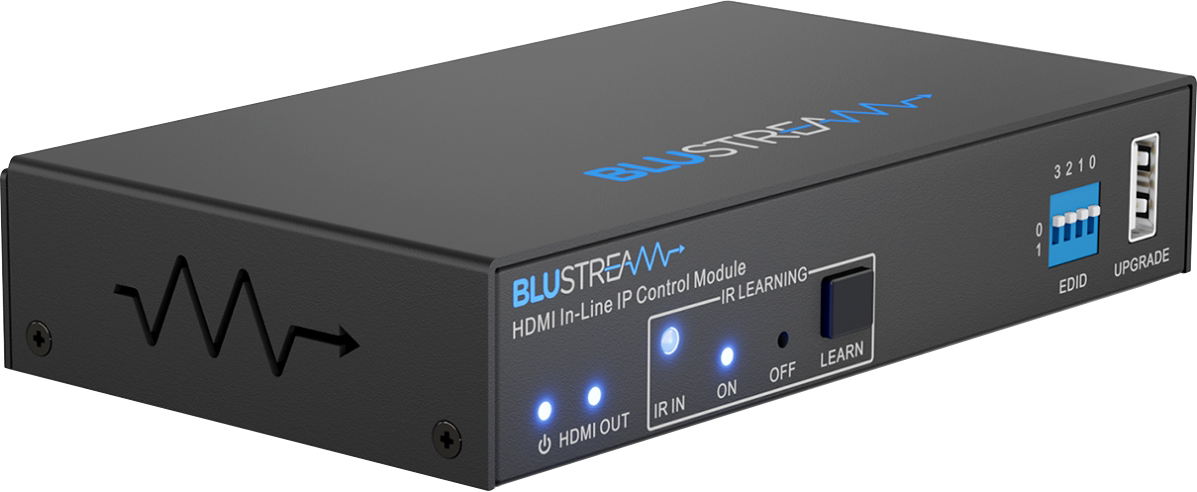

• EDID Selection: 4-pin DIP Switch

• Product Upgrade: 1 x USB Type A, female

• Dimensions (W x H x D): 145mm x 28mm x 84mm

• Shipping Weight: 1.0kg

• Operating Temperature: 32 F to 104 F (0 C to 40 C)

• Storage Temperature: - 4 F to 140 F (- 20 C to 60 C)

• Power Supply: 12V/1A DC

Box Contents

1 x HD11CTRL-V2
1 x 12V/1A DC Power Supply
1 x IR Emitter
1 x RS-232 Control Cable
1 x Mounting Kit
1 x Quick Reference Guide
